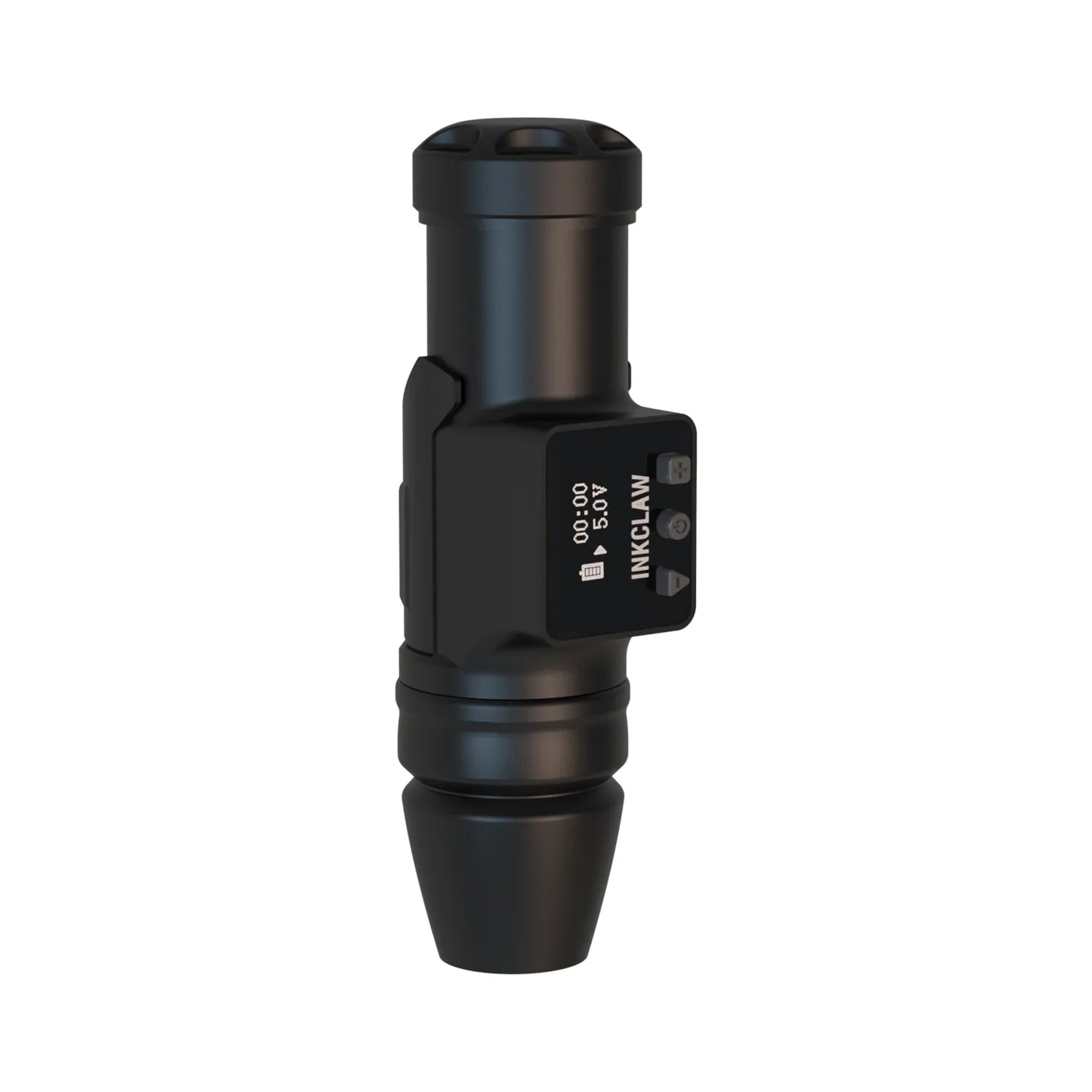

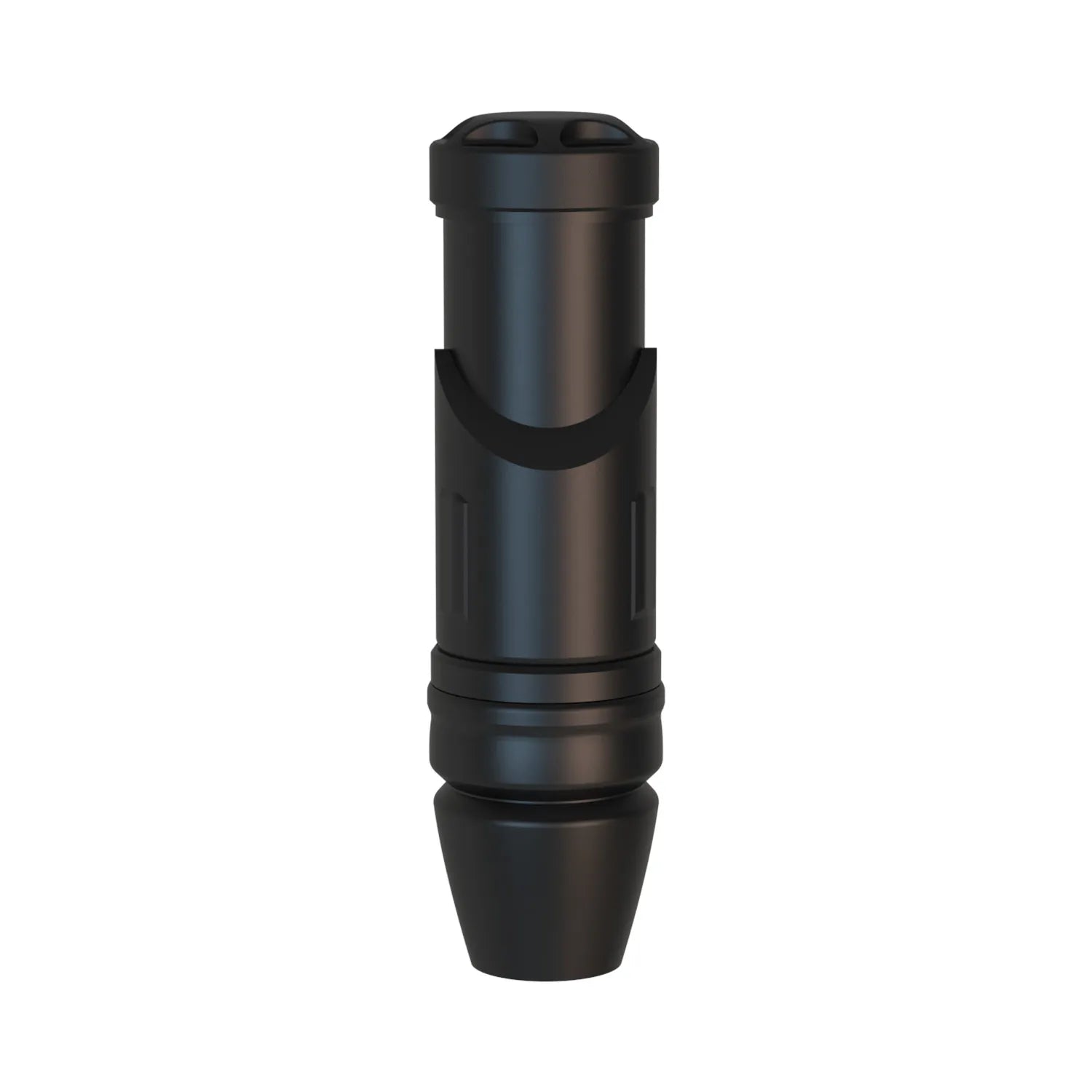

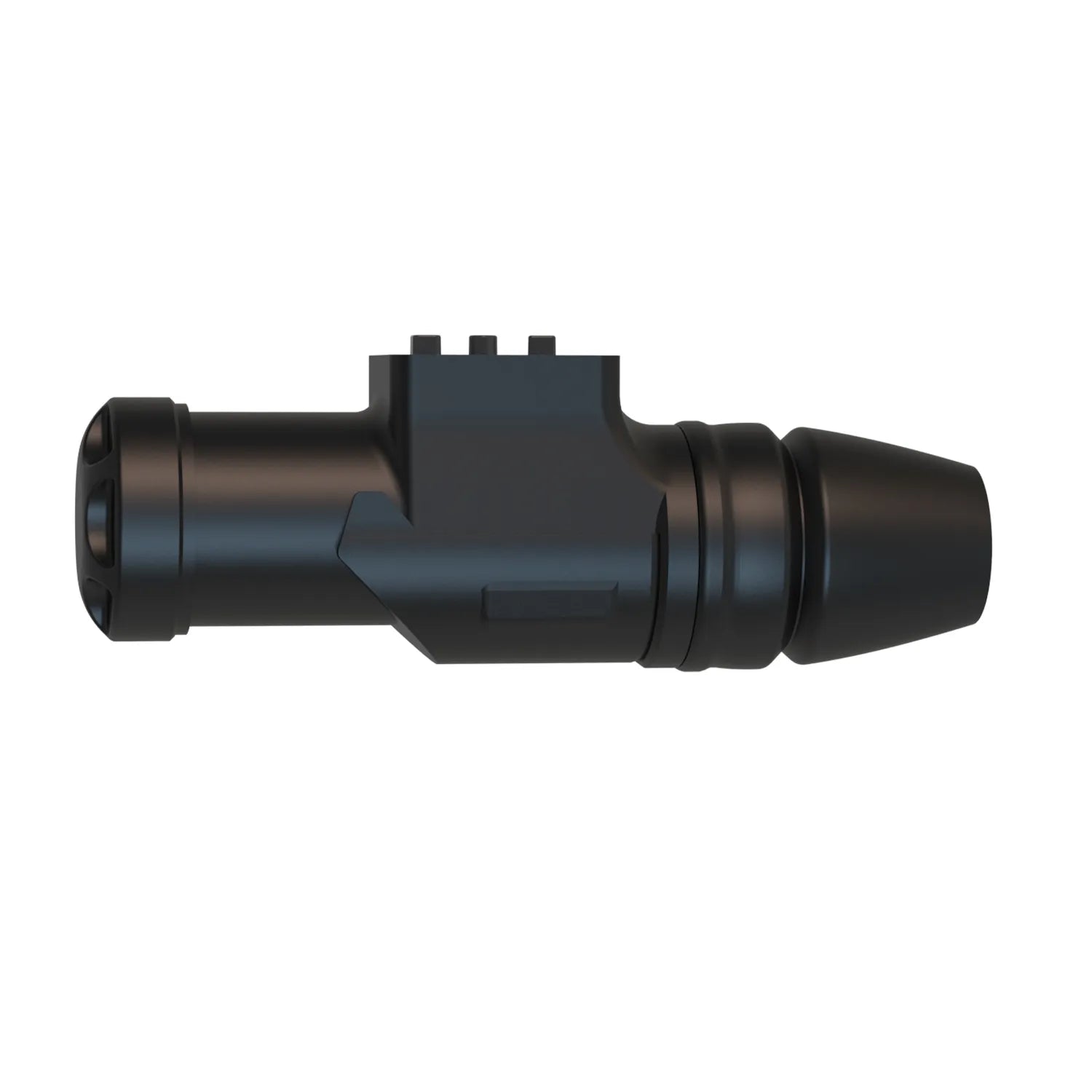

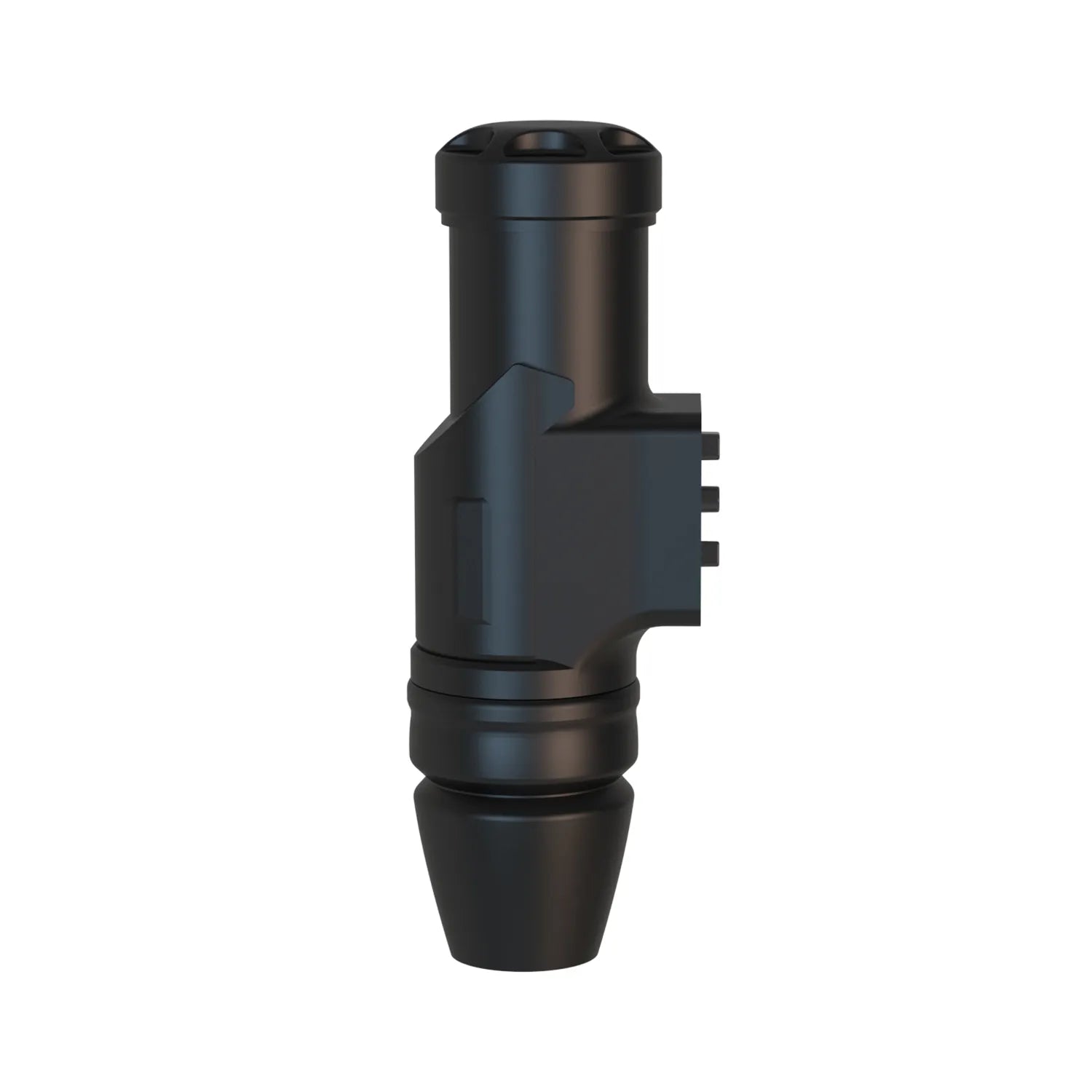

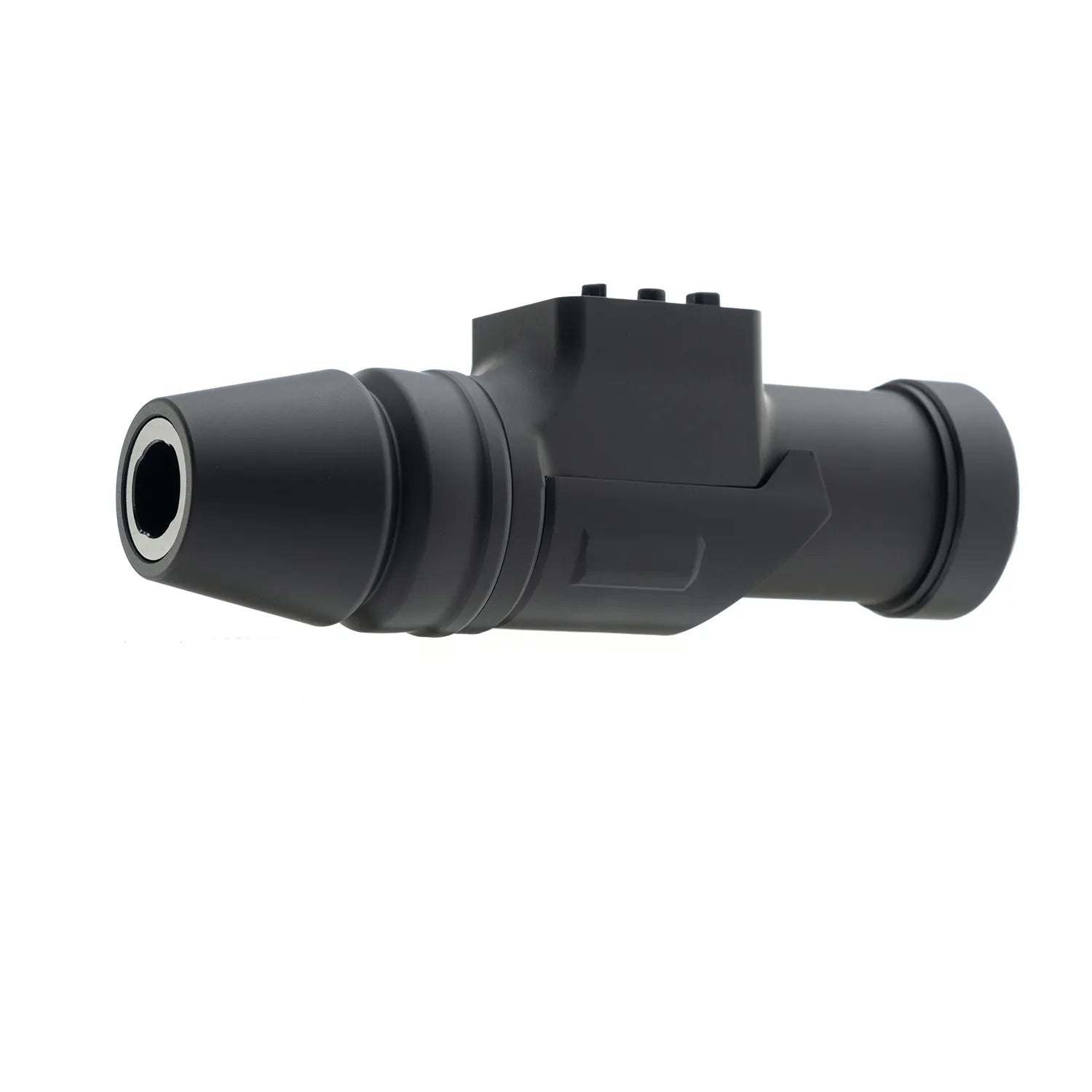

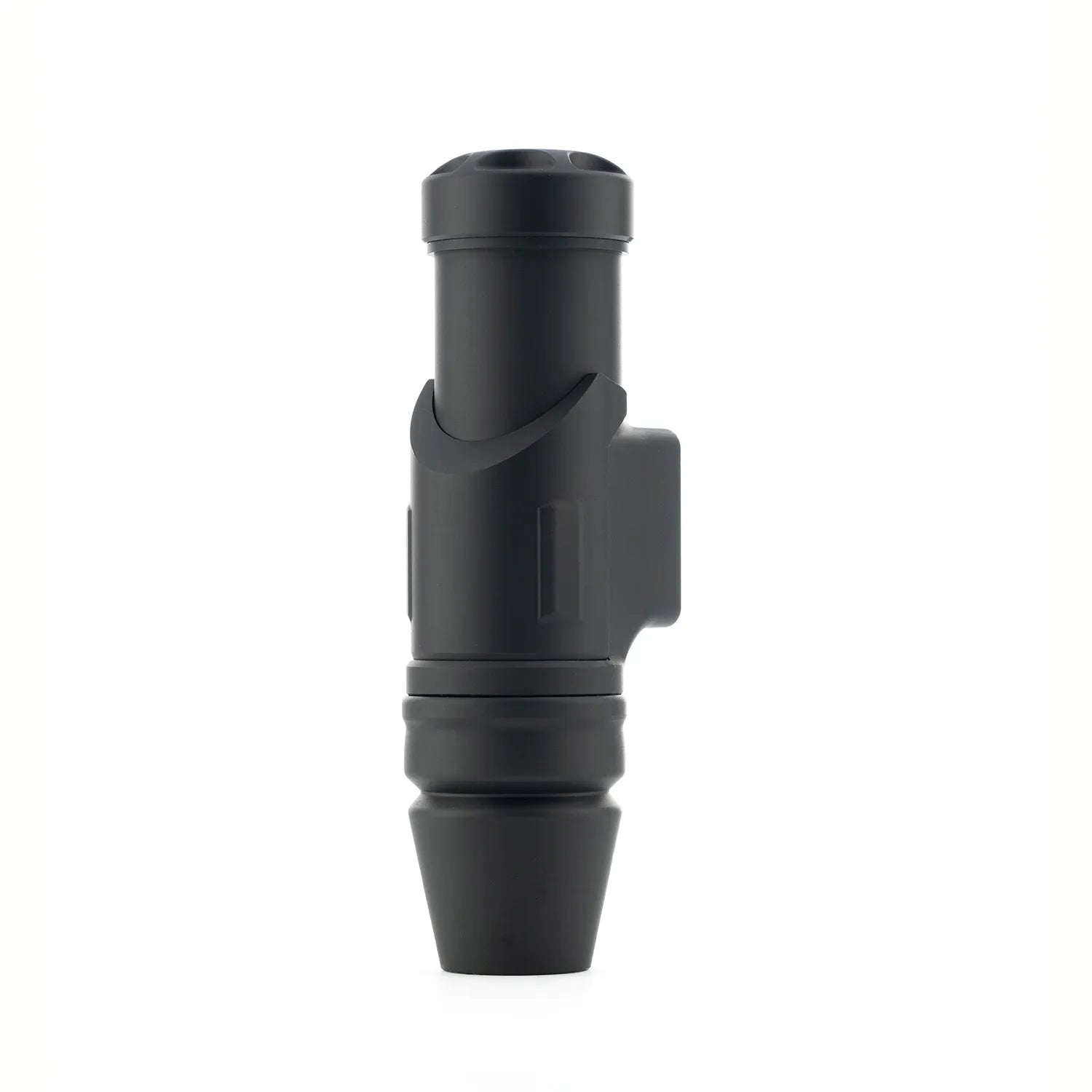

The Submarine Wireless Tattoo Pen - Black

Specifications:

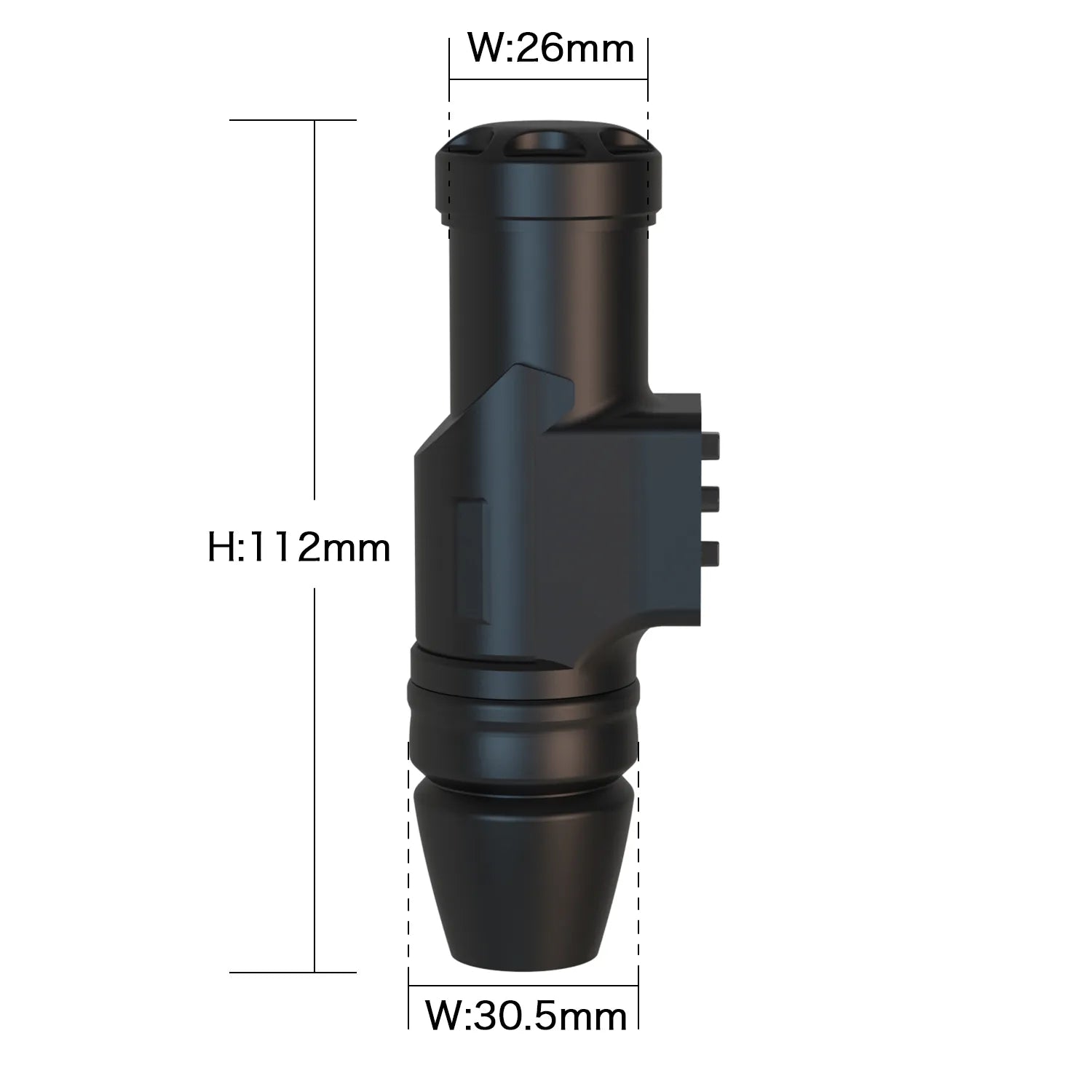

• Dimensions: L 112mm x W 30.5mm (4.4'' x 1.2'') With 18350 battery Weight 138 grams (4.9oz)
• Dimensions: L 127mm x W 30.5mm (5'' x 1.2'')   With 18500 battery Weight 150 grams (5.3oz)
• Interchangeable Fixed Stroke Cam: 2.5| 3.0 | 3.5| 4.0 | 4.5 | 5.0 mm Available
• True direct-drive power: Reinforced thicker 1.5mm Short straight drive bar
• CNC-carved super-grade aluminum body
• Motor: Max: 250g torque brushless motor
• Operation Frequency: 4V -12V (45hz - 155hz)
• Recommended working Voltage: 4-6.9V (45-85hz 2700-5100RPM)
• Install the 18350 or 18500 battery with the positive pole facing down
• Seamless needle throw-out adjustment: 0-4.5mm without changing needle direction
• When the needle is adjusted to its shortest length, you will feel noticeable resistance. Please do not continue to twist the grip at the same direction, it may cause damage.
• Long-press the power button to start | turn off the machine
• Press the + and - buttons at the same time to reset the timer.
• Compatible with most tattoo cartridge needle brands on the market

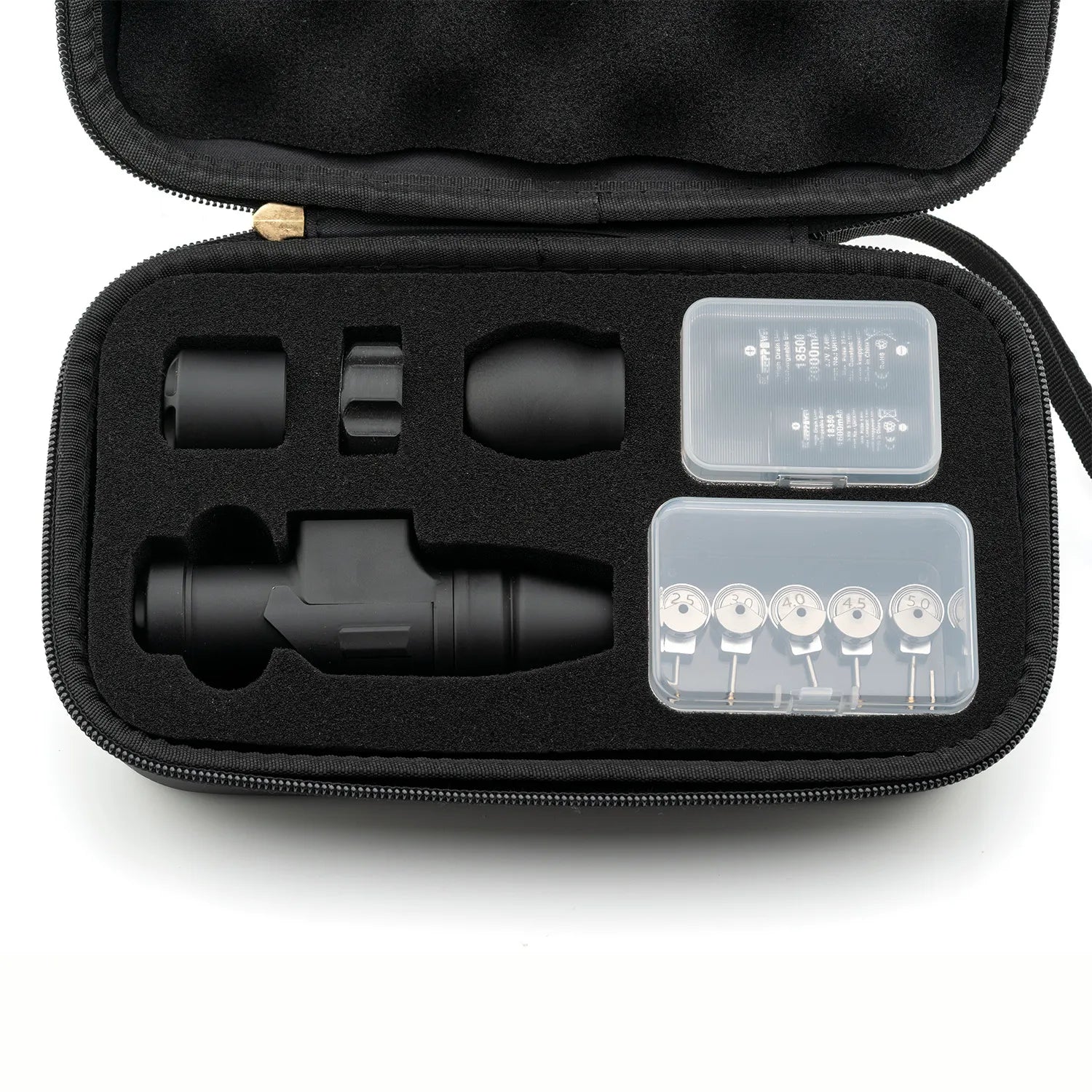

• Package includes: 6 cam wheels (1 set up, 5 extras), 1 x 18350 battery, 1x 18500 battery (including battery cap),  1 extra ball-shaped grip, and charger.
• User Manual - The Submarine Tattoo Pen (click link)

Inkclaw x Tanan The Submarine Wireless Tattoo Pen Machine

Less bulk. More control. Better results.

"The Submarine" ‪is one of the shortest, lightest, thinnest, uniquely shaped wireless pen machines, with ‬interchangeable batteries and stroke lengths. ‪This short-body, bold, straight-bar direct-drive wireless tattoo pen machine is engineered for artists who demand the best: clean lines, high efficiency blending, shading, and consistent coloring. The submarine tattoo pen weighs only 138grams when equipped with a 18350-type battery, and 150grams with a 18500-type battery, and the length is 112mm (4.4''). This rear weight bias and small-diameter profile reduce hand fatigue and improve control, which is great for long sessions and tight areas. ‬‬

True direct-drive power

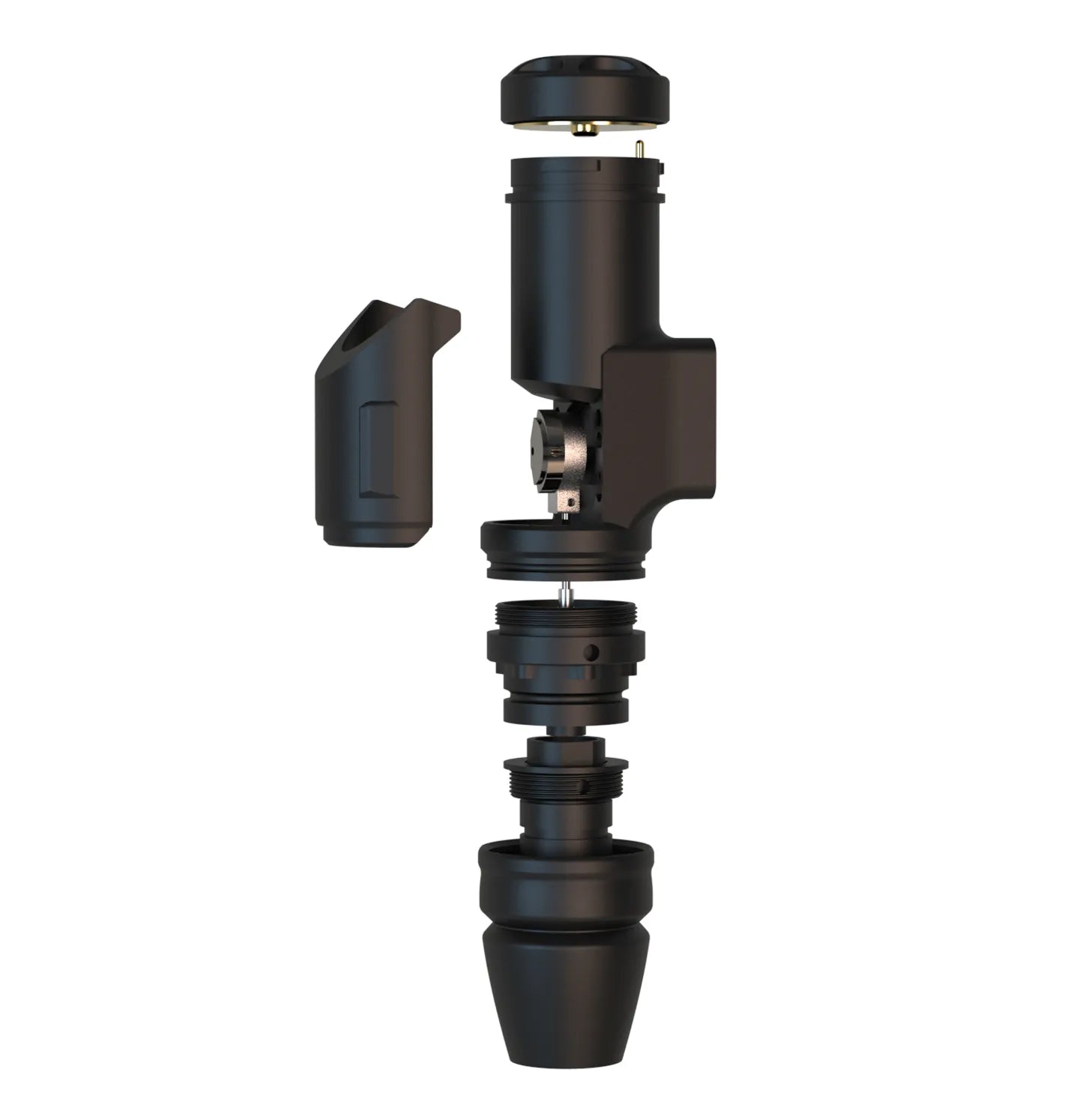

"The Submarine" wireless tattoo pen has adopted a magnetic structure design for the cam wheel cover. Users can easily replace the cam wheel by opening the cover and removing the handle. There are in total 6 fixed stroke cams available: 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, and 5.0mm, which is ideal for all different styles of tattoo artists.‬

Multiple Stroke Choices - Easily Exchange

"The Submarine" wireless tattoo pen adopted a magnetic structure design for the cam wheel cover. Users can easily replace our cam wheel by opening the cover and removing the handle. There are in total 6 fixed stroke cams available: 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, and 5.0mm, which is ideal for all different styles of tattoo artists.

The 2.5mm stroke is ideal for sot black and gray, allowing for more passes over the skin to build up layers of ink, and really less trauma to the skin.

The 3.0-3.5mm stroke is ideal for blending, shading, multiple passes, very fine linework, and anything requiring a softer touch.

The 4.0mm Stroke is ideal for line work and efficient color packing. You can run it lower for softer work and higher voltage for bold lines and blackouts.

The 4.5/5.0mm stroke is ideal for single needle tattoos, 3RL slow stippling, or easily handling bold lines over 9RL, 11RL, and even larger groupings

Straightforward Operation & Maximum Comfort

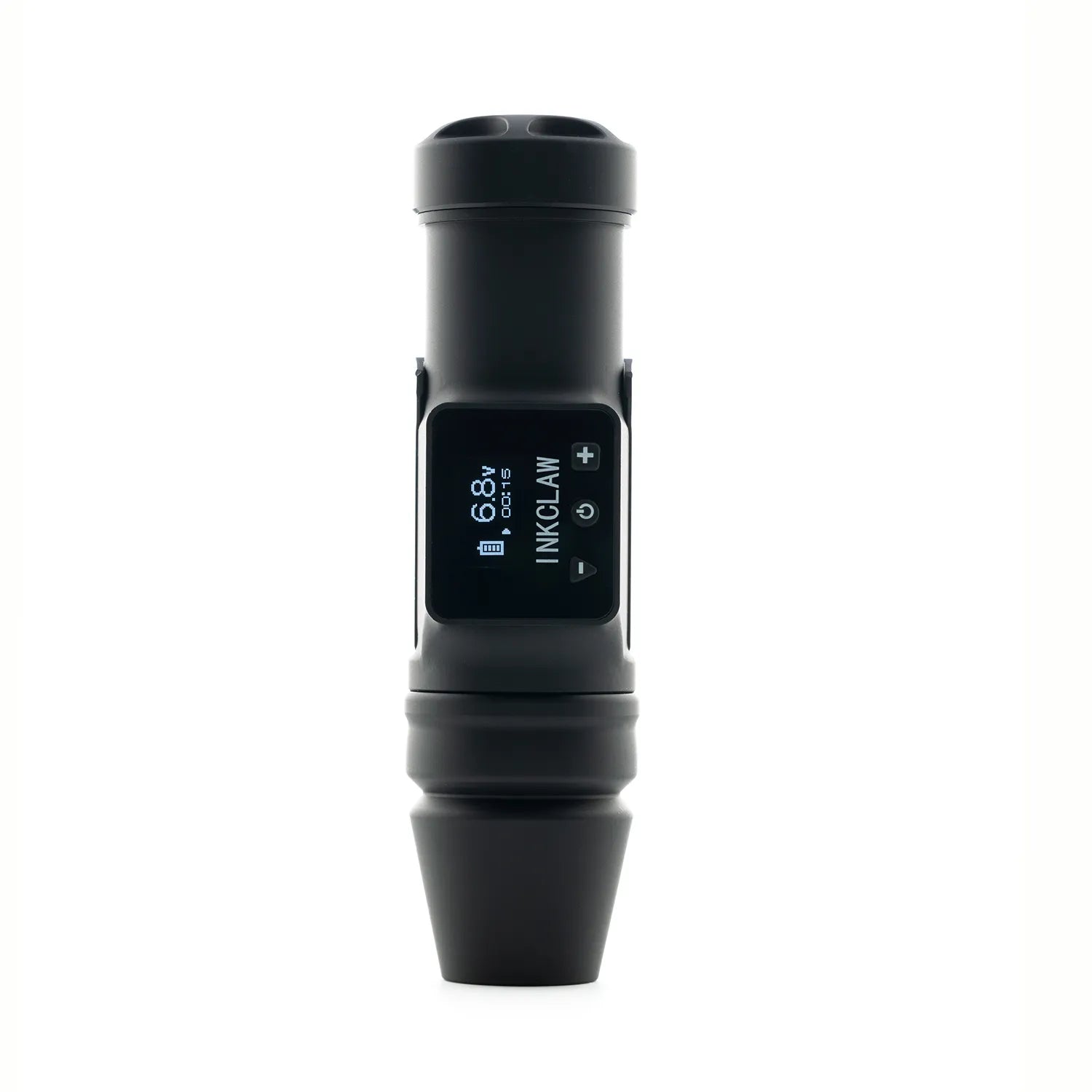

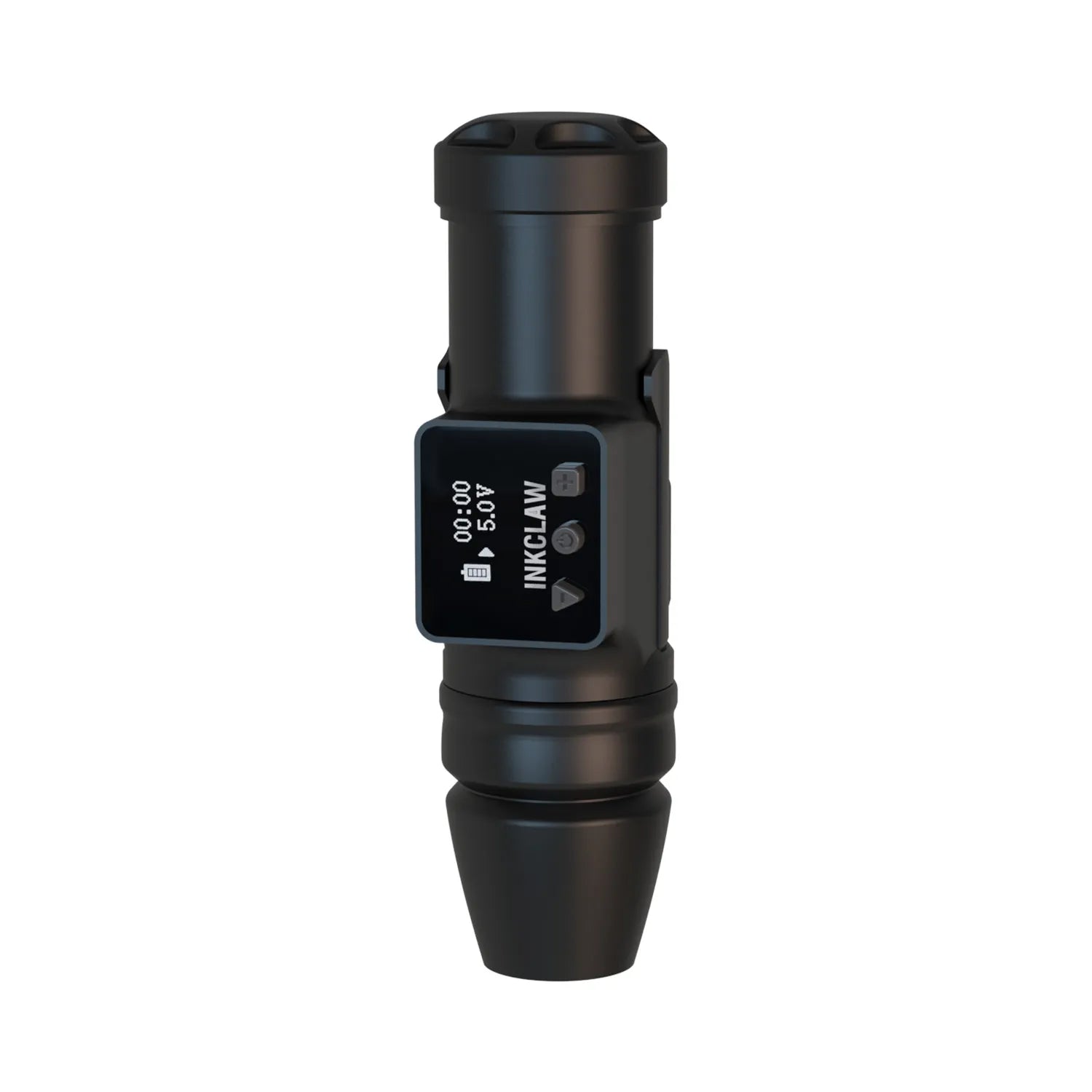

Seamless needle throw-out adjustment, centered buttons, and screen, extremely lightweight, all these reliable features help tattoo artists focus on their work, not menus.‬

Battery Flexibility

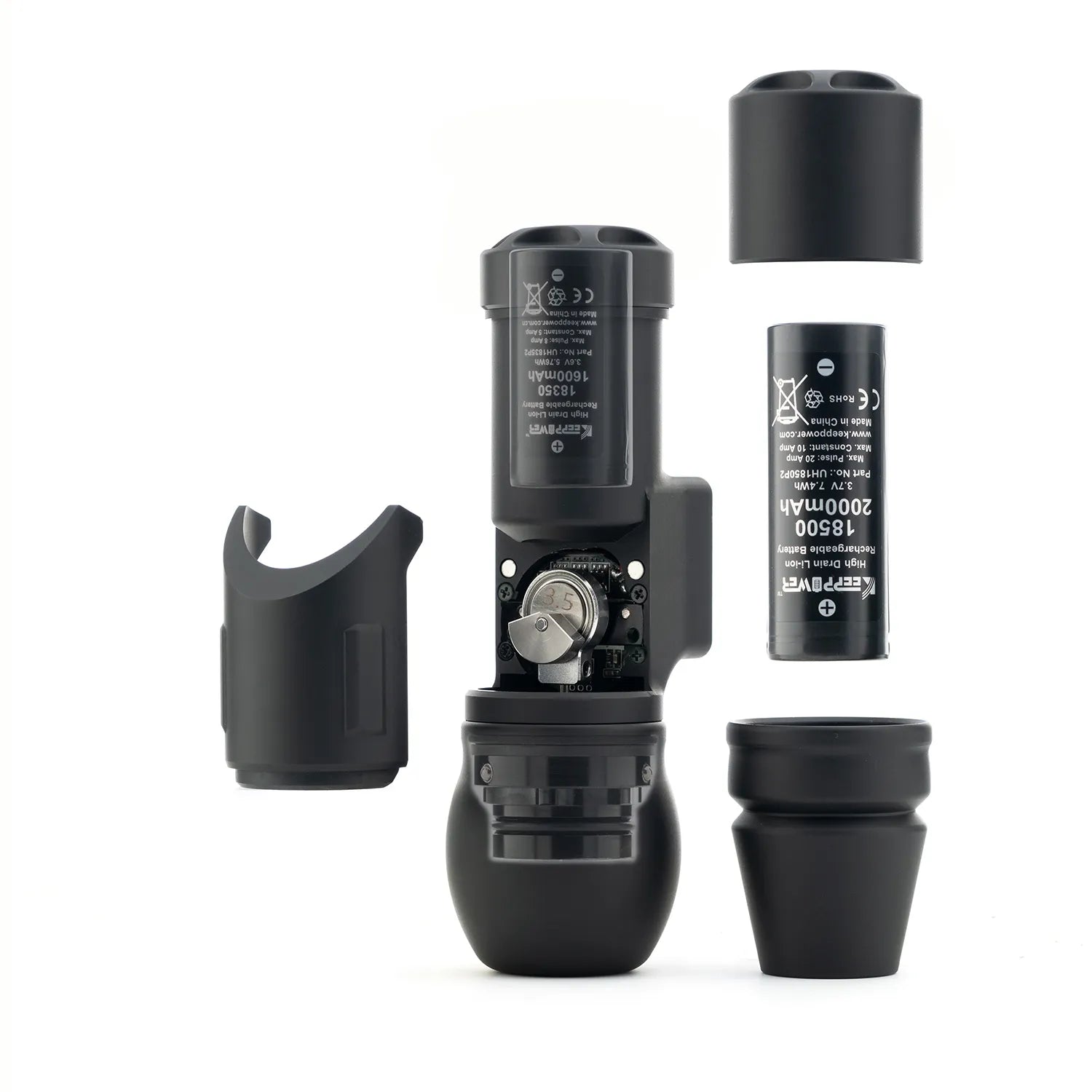

‪Runs on ‪18350‬ or ‪18500‬ type of battery. Choose your preferred balance of size vs. runtime; low-cost swaps keep you working all day. The usage of one 18350 battery can last 4-7 hours, depending on the voltage and stroke that compatible with. A 18500 battery will have a way longer usage time.‬

Use manual & Maintenance

• Install the 18350 or 18500 battery with the positive pole facing down
• Long-press the power button to turn on or off machine
• Pressing the + and - buttons at the same time to reset the timer feature
• Since the adjustment part of the tattoo grip is fixed with an O-ring, please pull it out straight and shake it left and right to let air in when disassembling. This way, you can remove the adjustment end of the grip with the right touch. Do not use brute force to disassemble it.
• The body can be wiped externally with cold sanitation products.
• We recommend cleaning your machine with cold sterilization techniques with germicidal agents like Madacide and wrapping and bagging your equipment before use
• Aluminum Grips can be autoclaved
• Please keep the battery charged. Do not leave the empty battery inside the machine for a long time; this will damage the machine.
• When the needle is adjusted to its shortest length, you will feel noticeable resistance. Please do not continue to twist the grip at the same direction, it may cause damage.
• User Manual - The Submarine Tattoo Pen (click link)

Voltage vs Frequency Chat

There may be some errors depending on the different testing methods.

How to install a battery

How to change grip

How to change stroke cam

How to change the needle's facing direction
