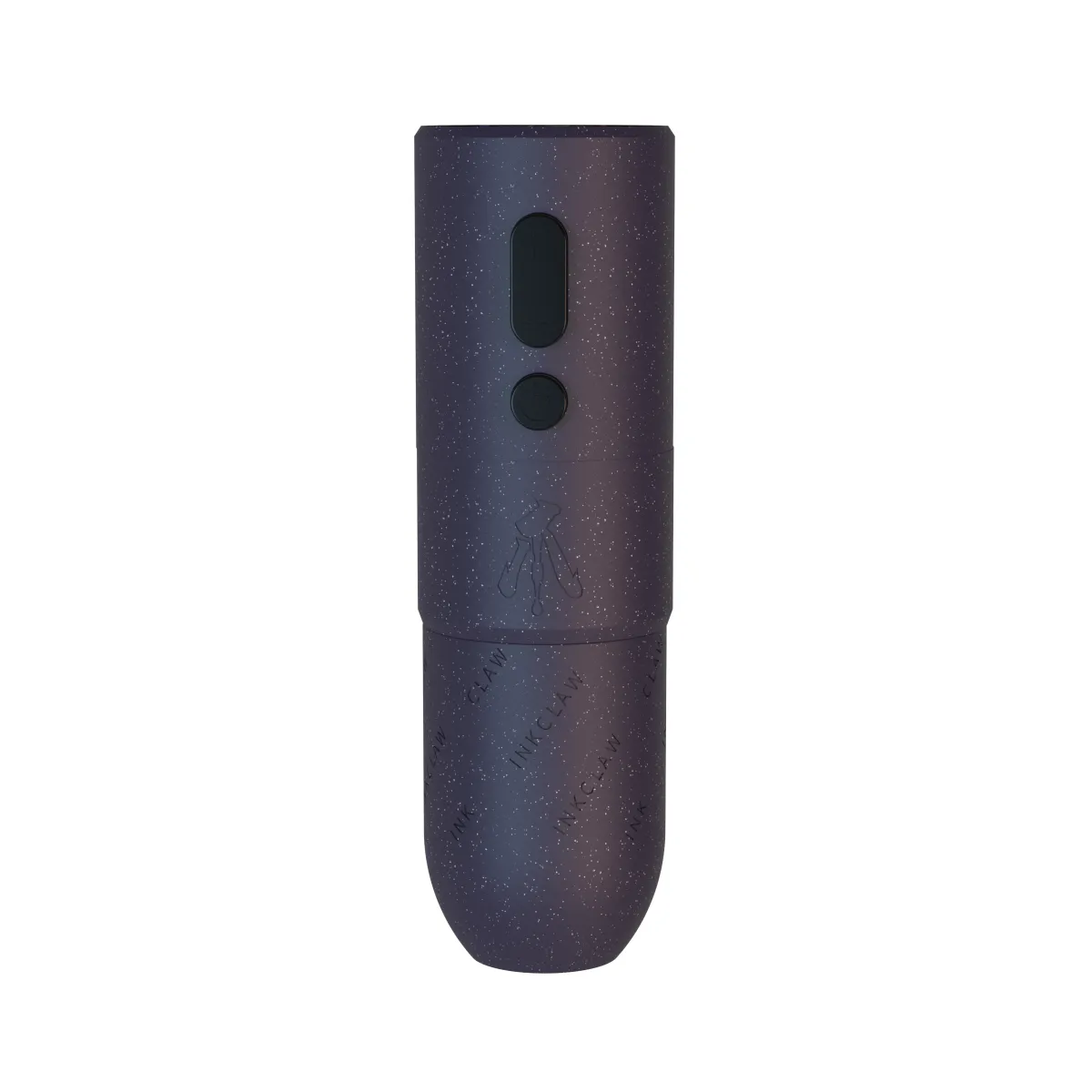

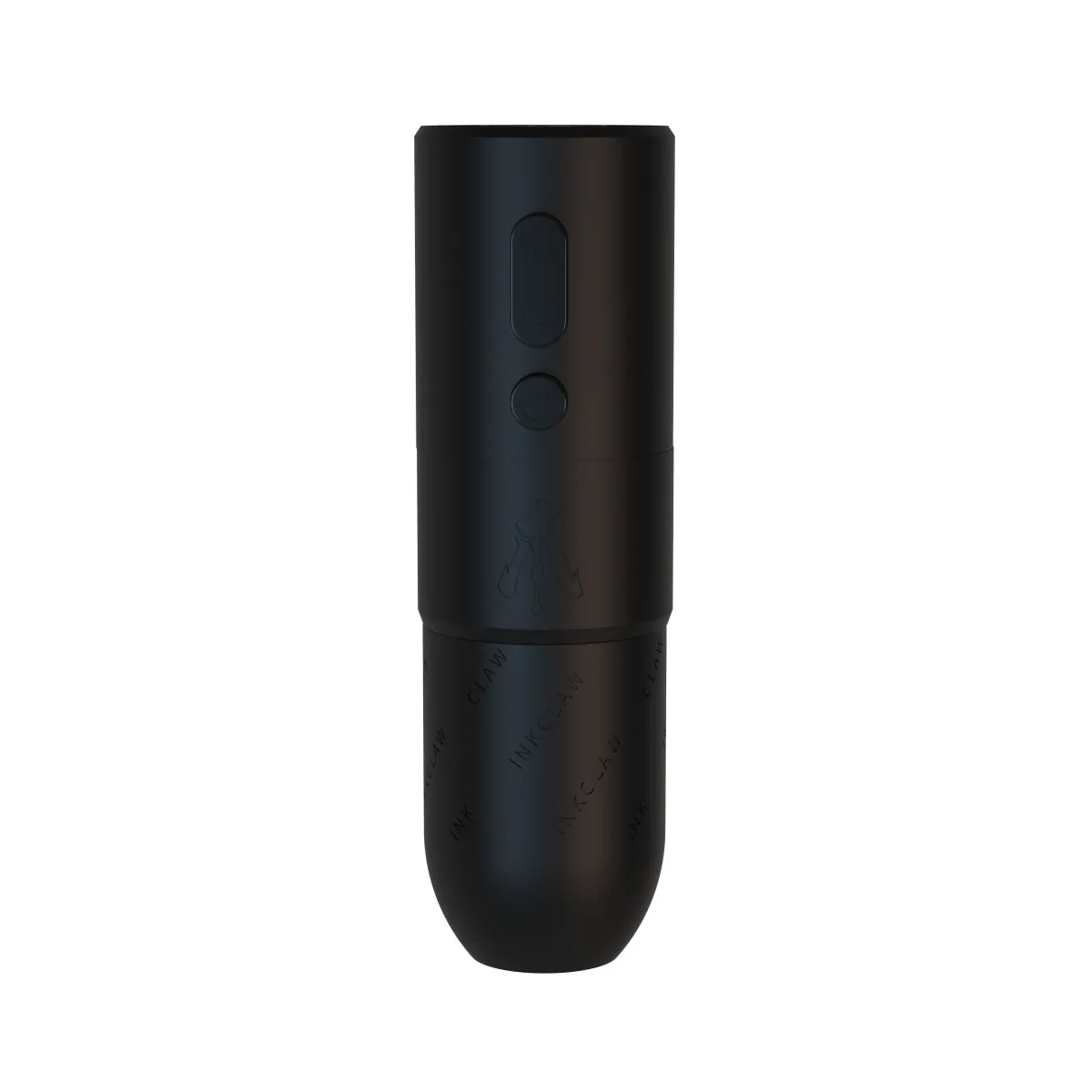

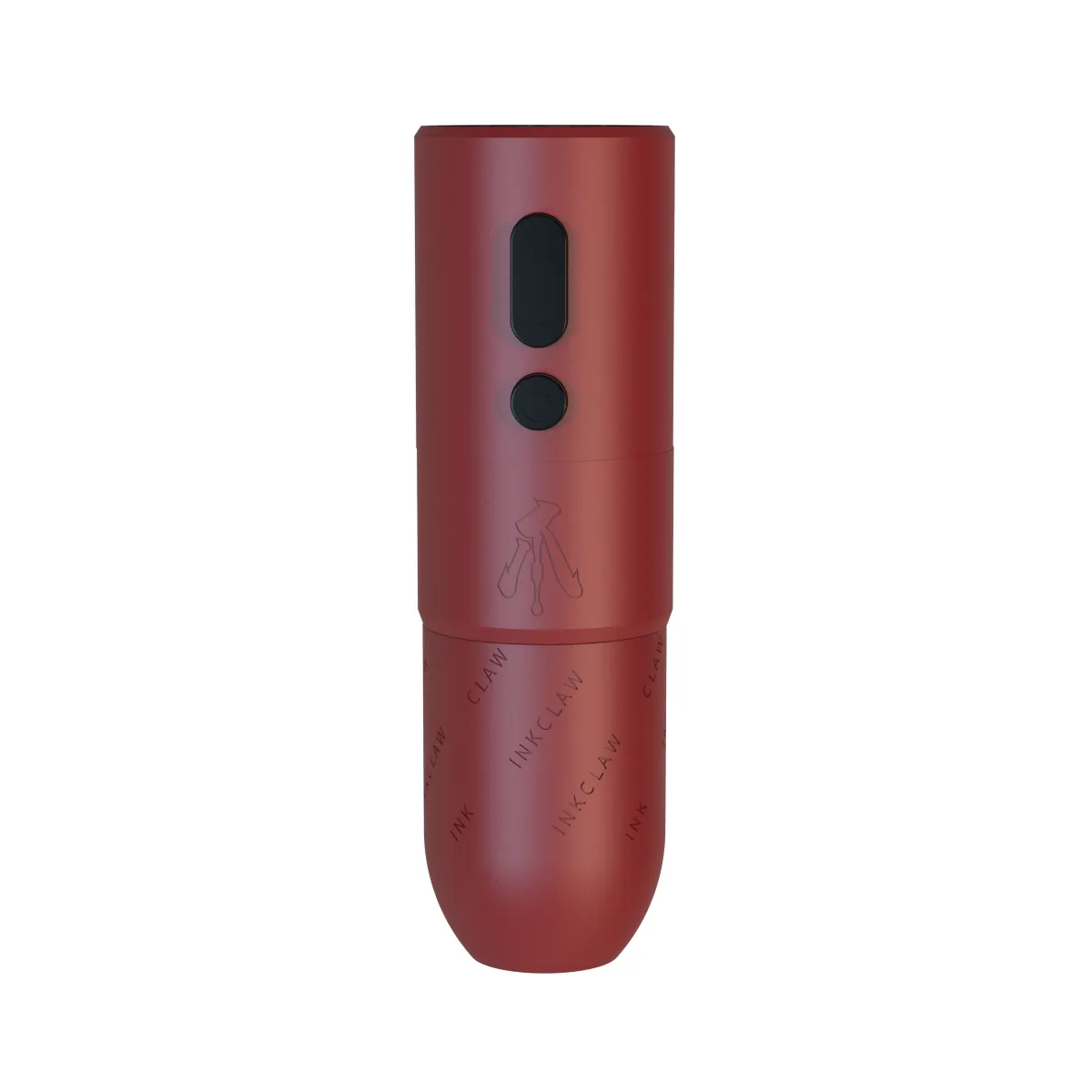

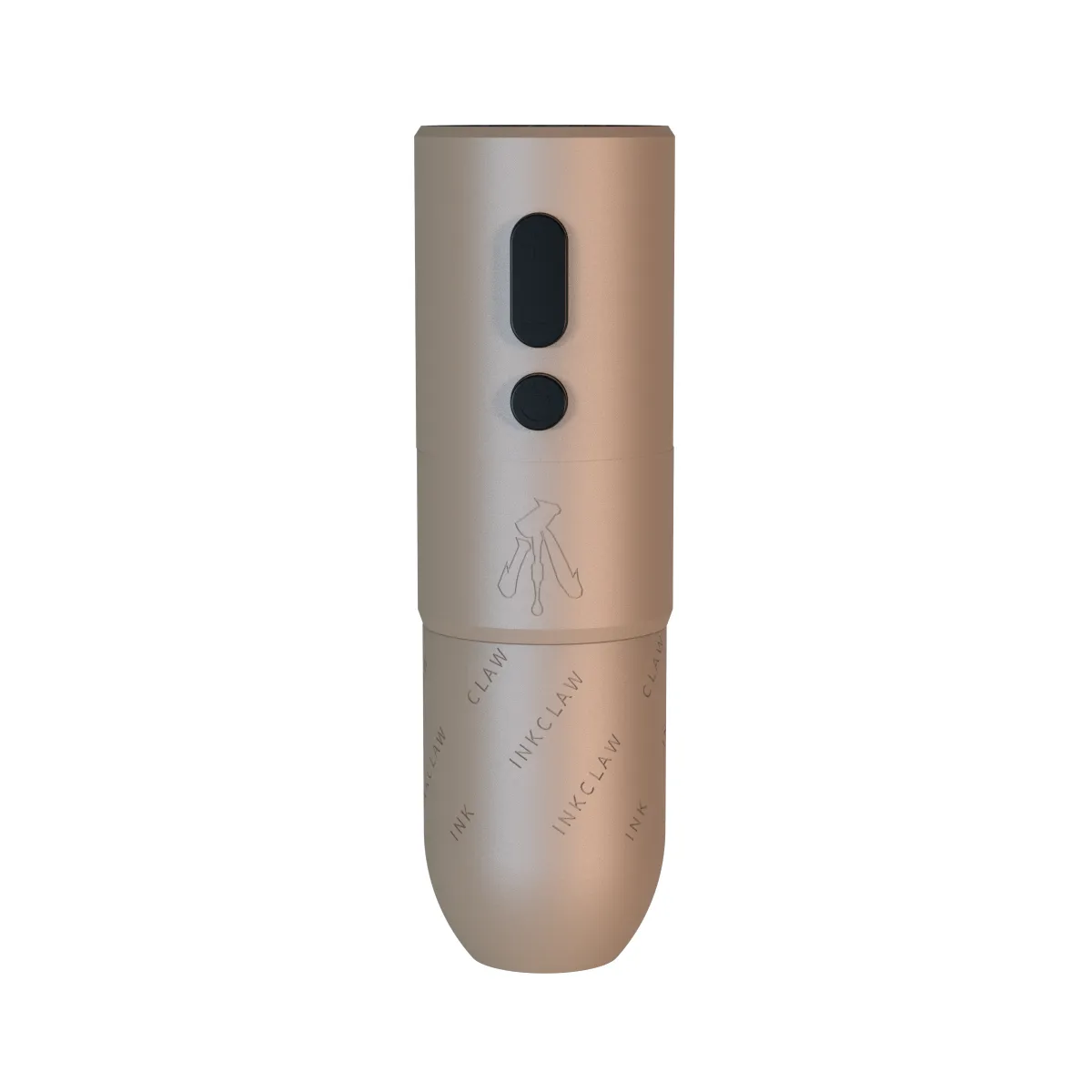

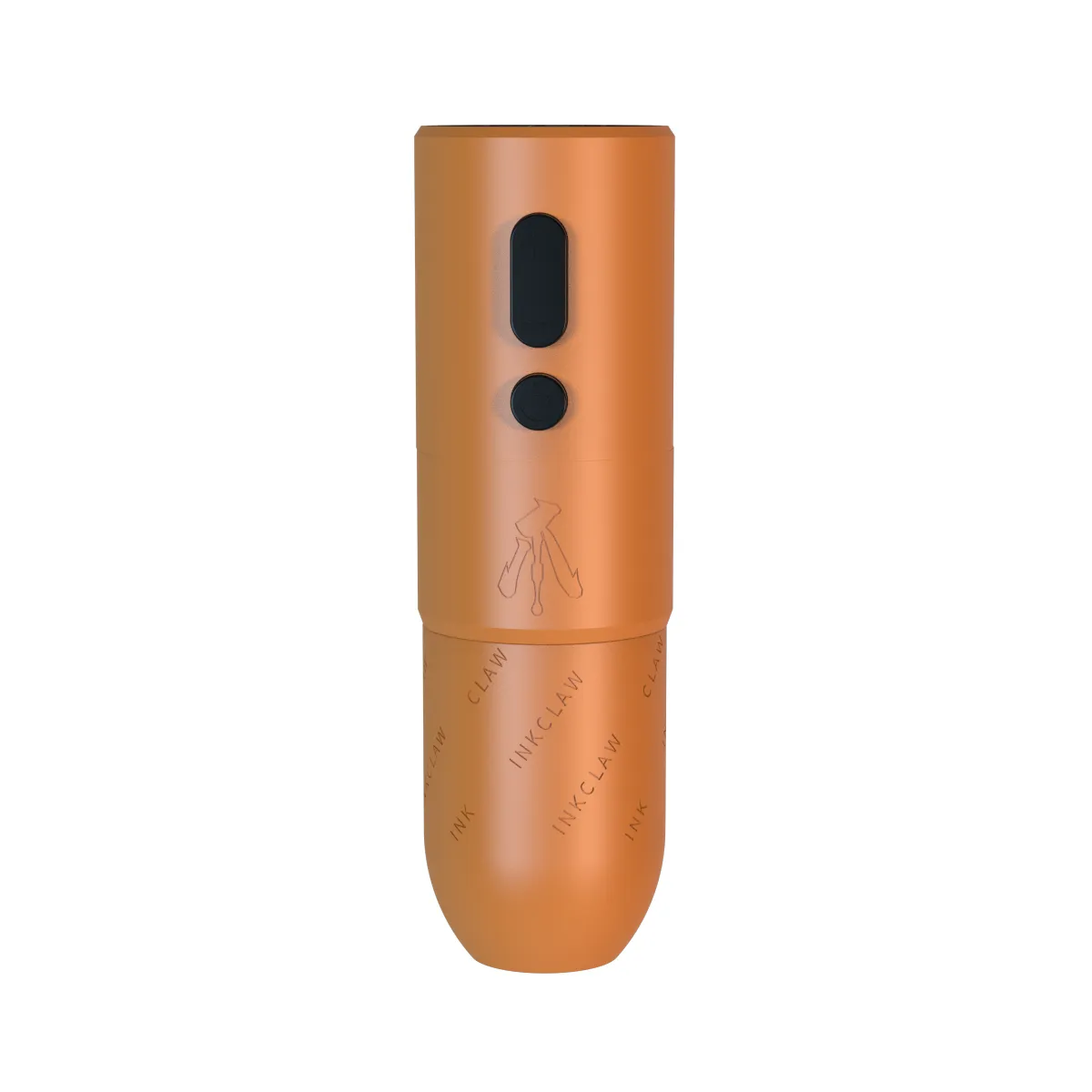

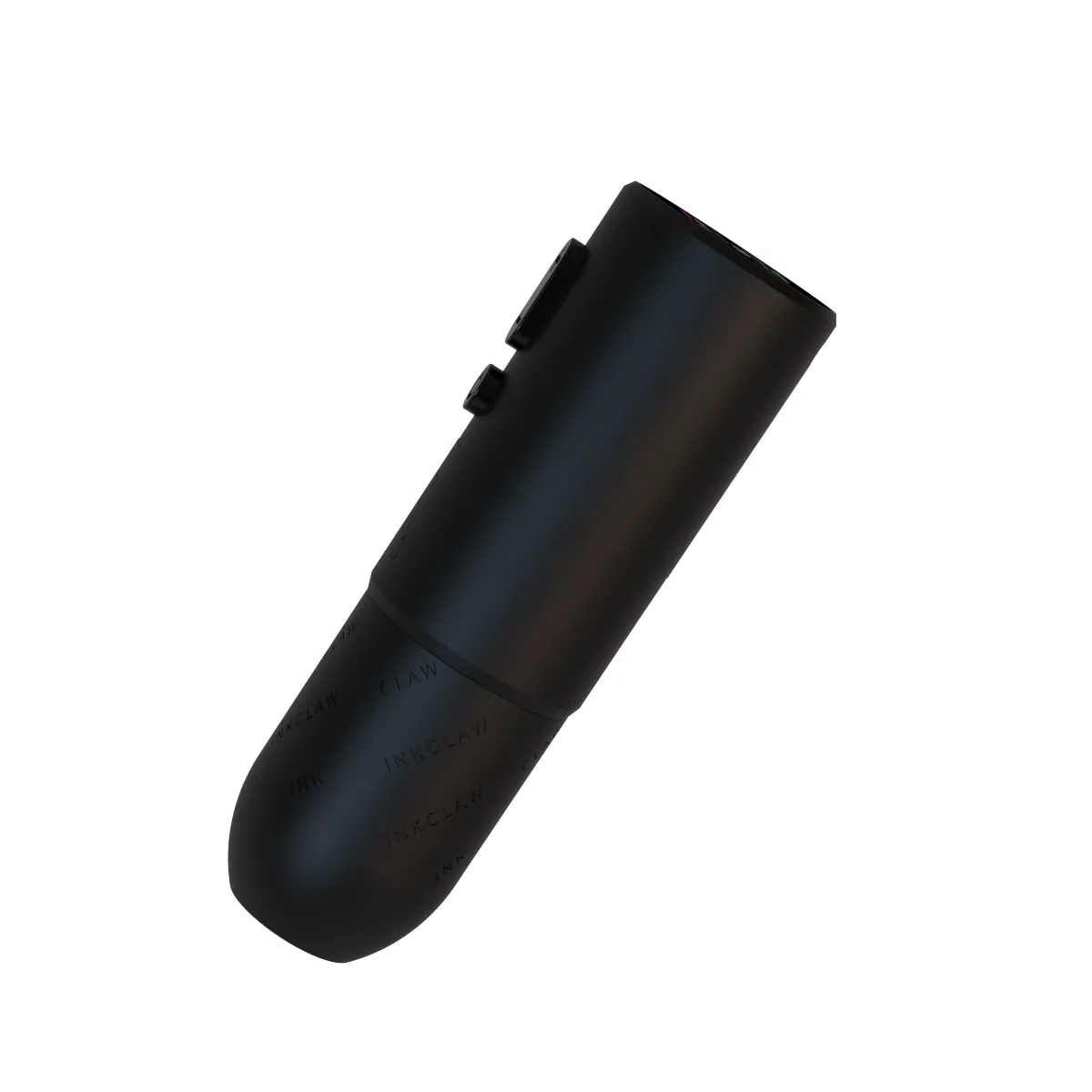

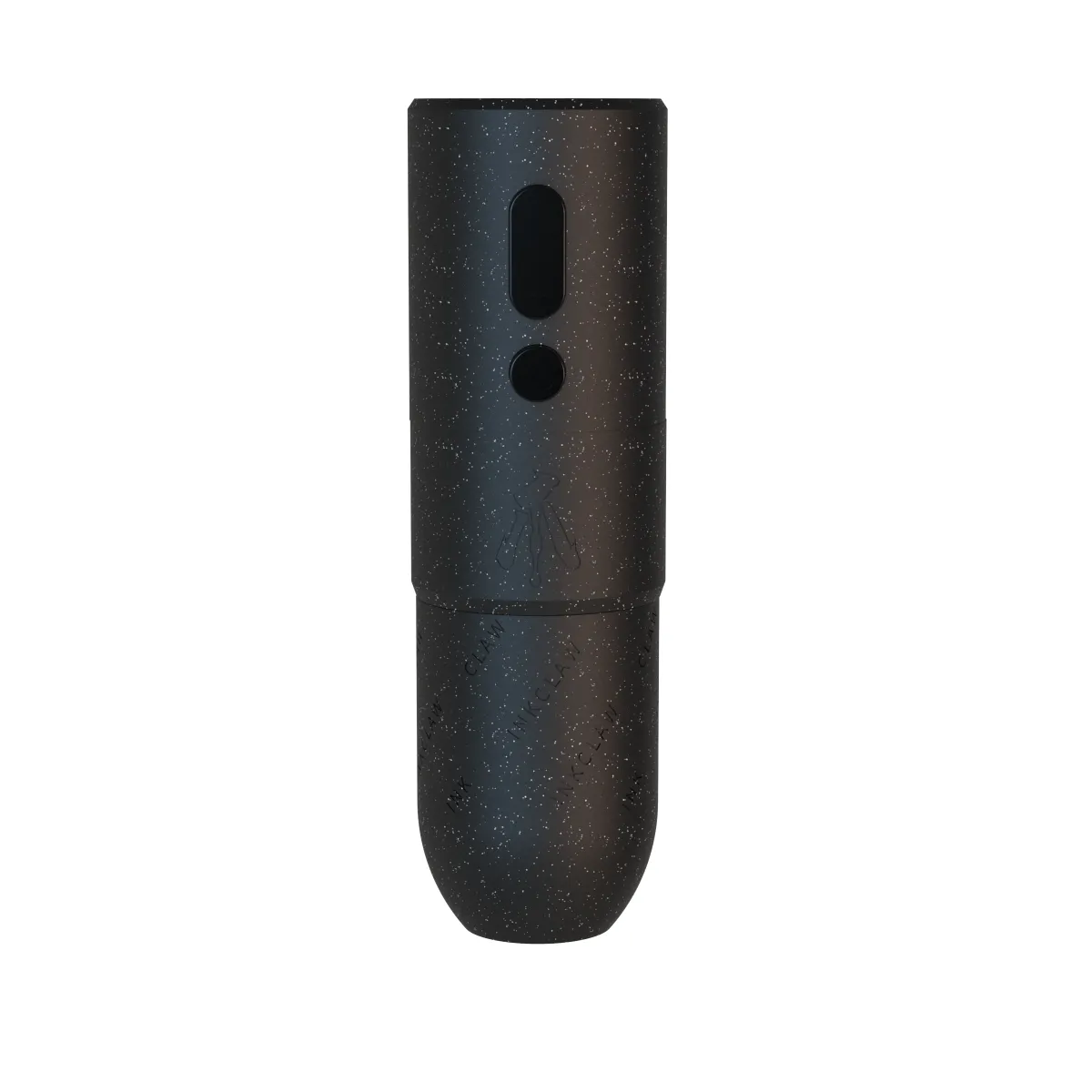

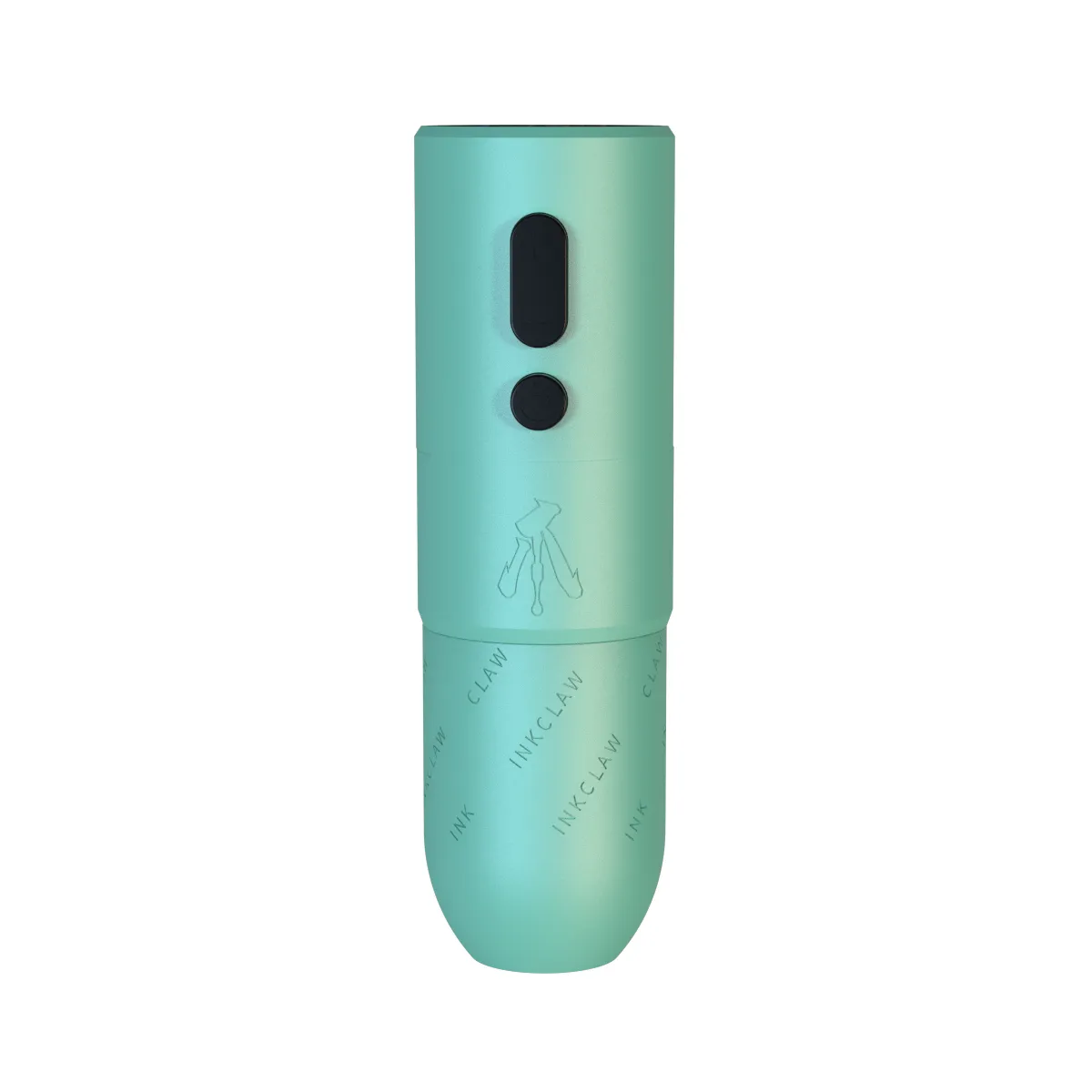

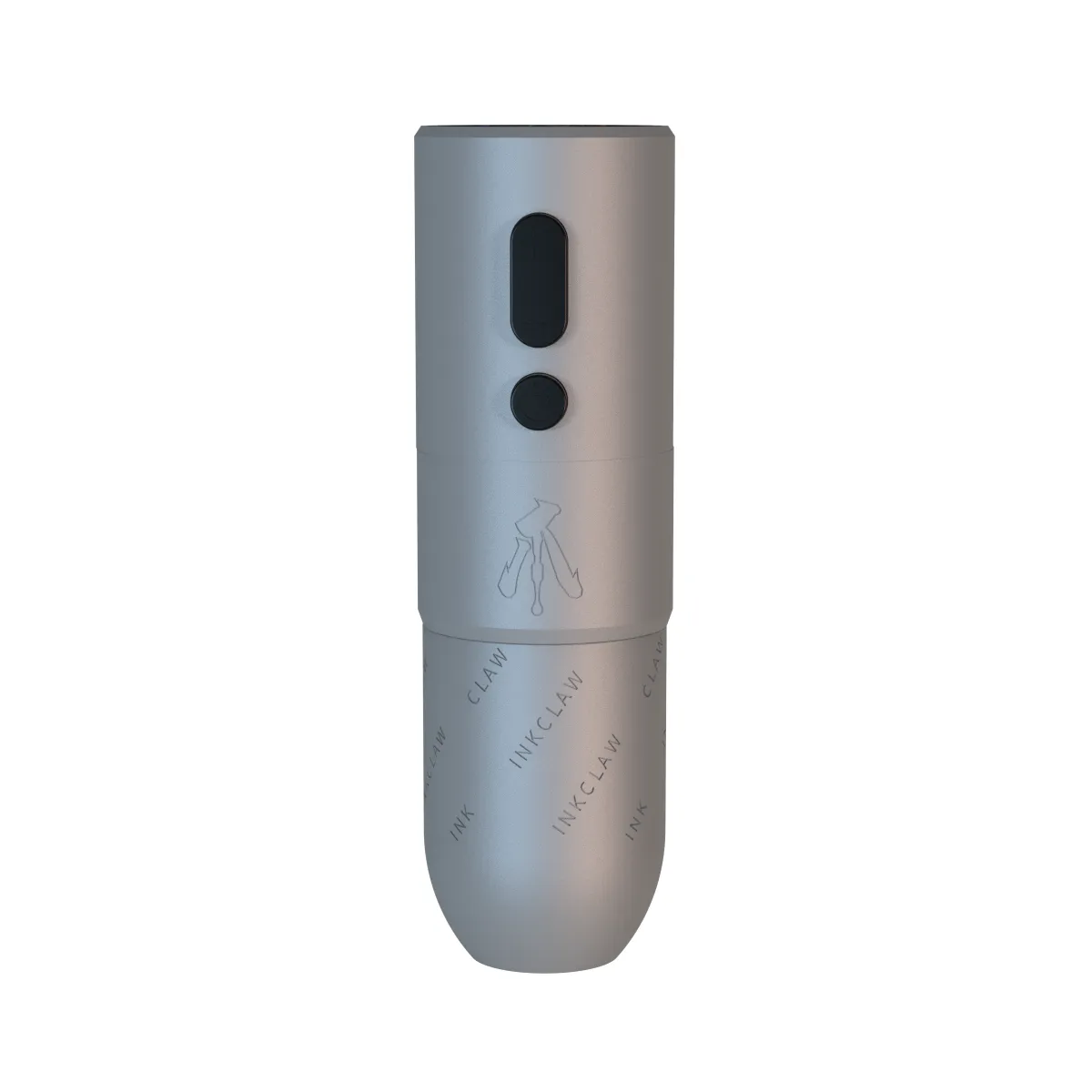

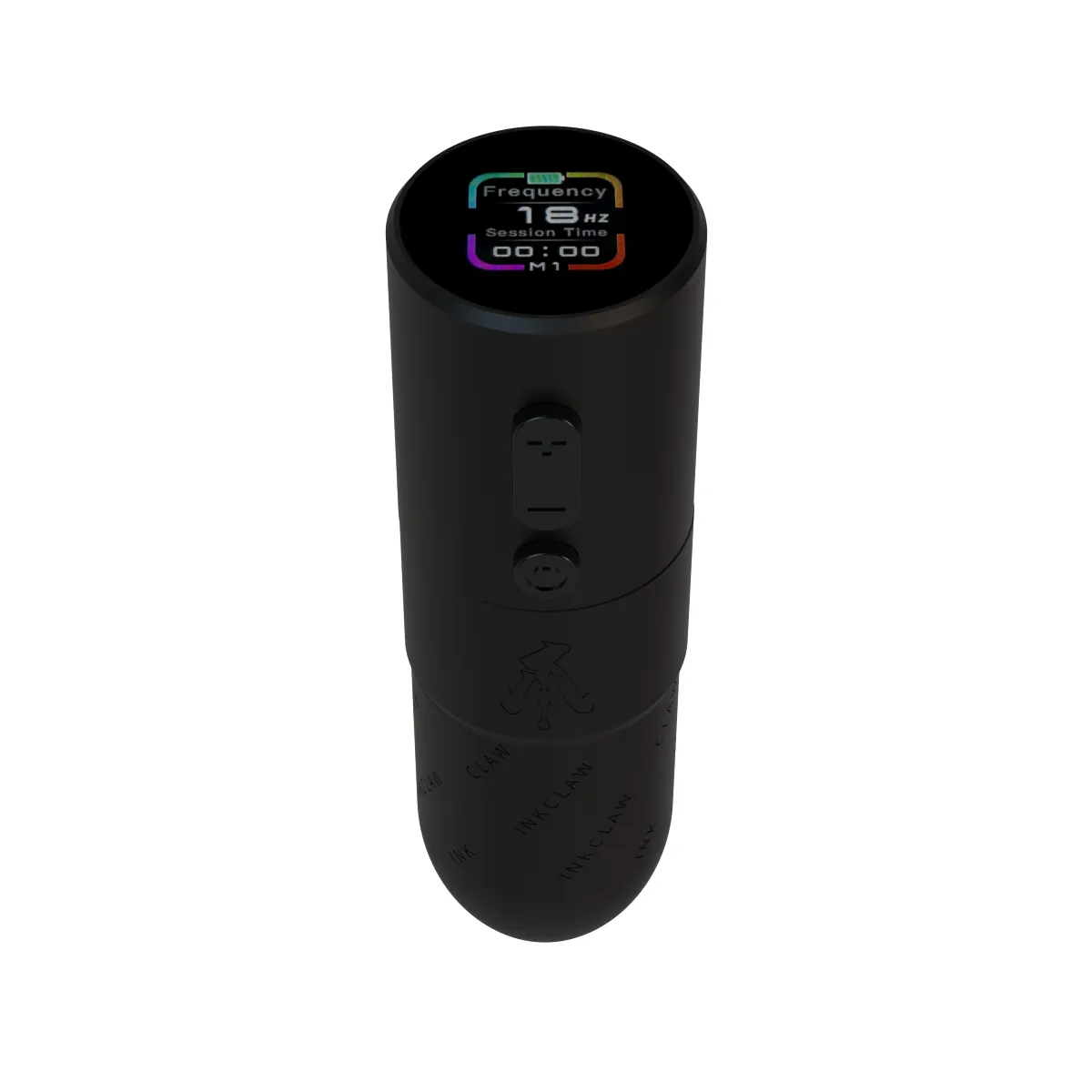

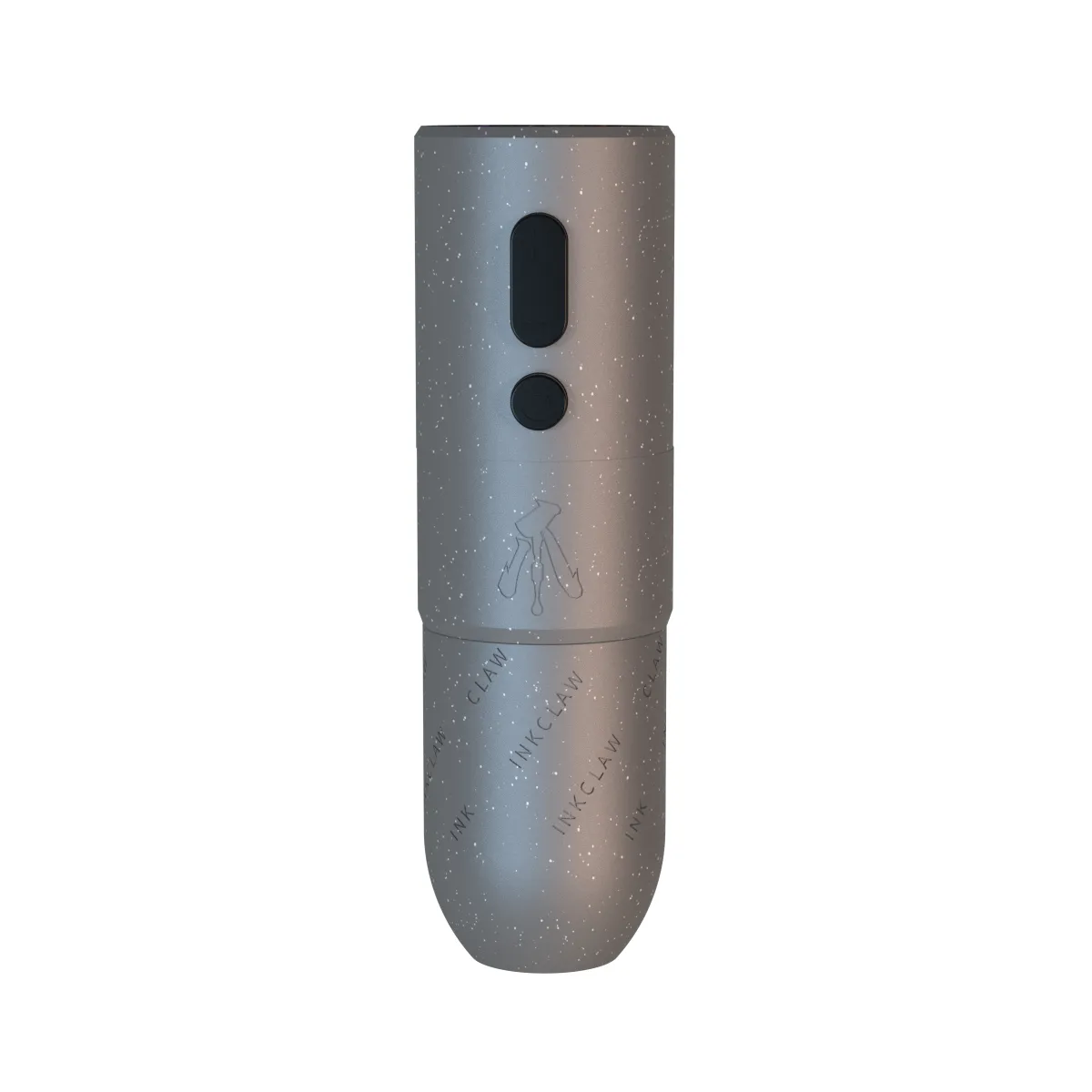

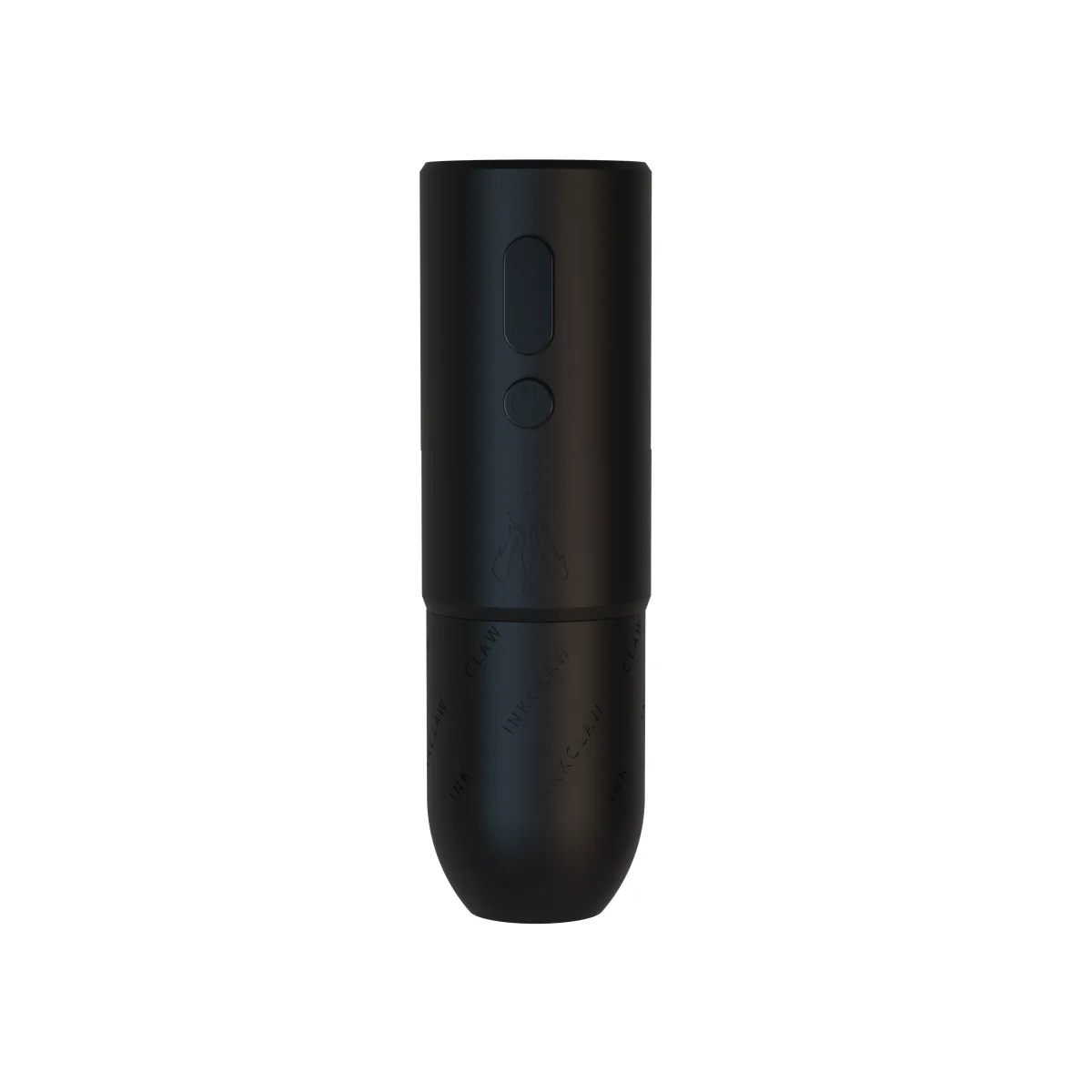

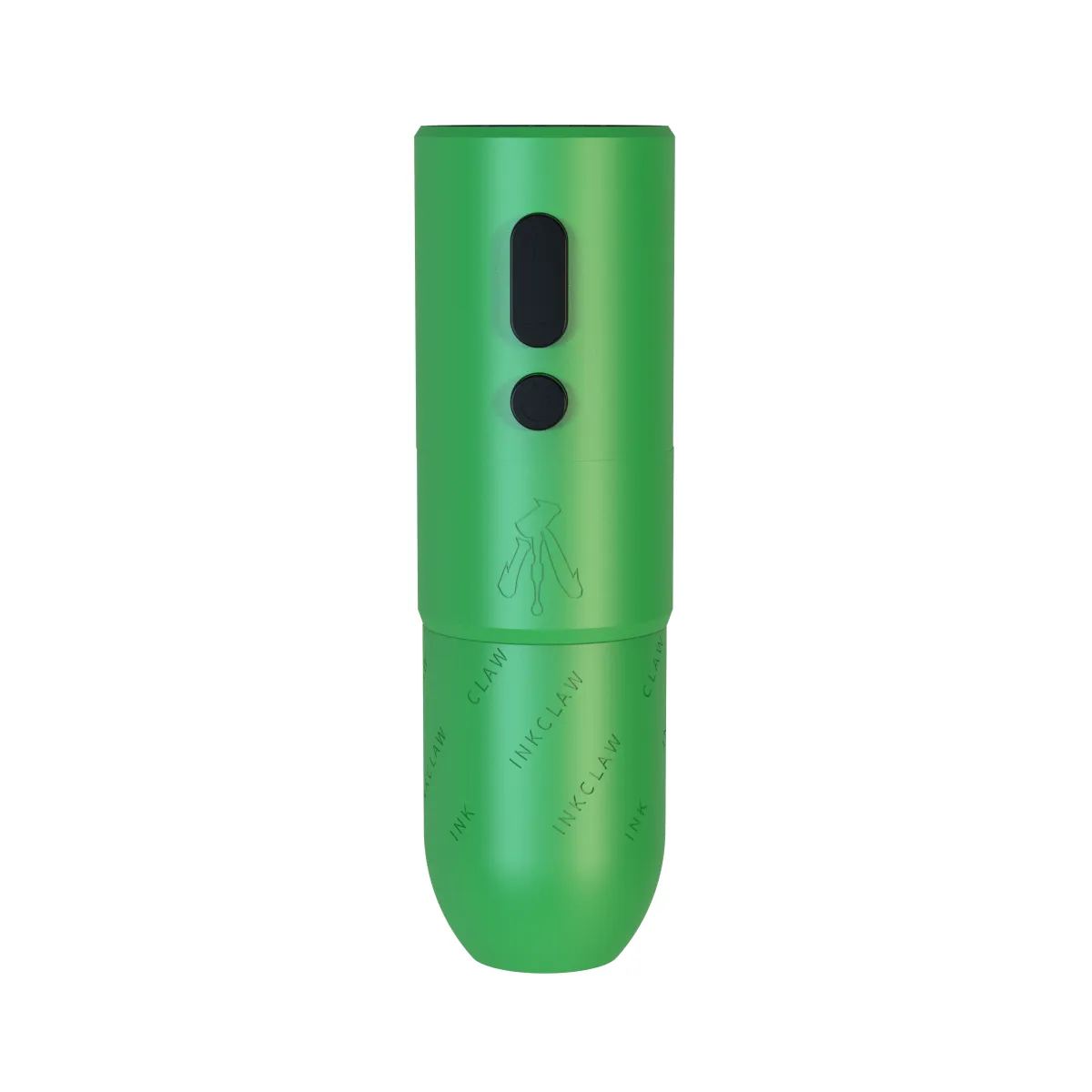

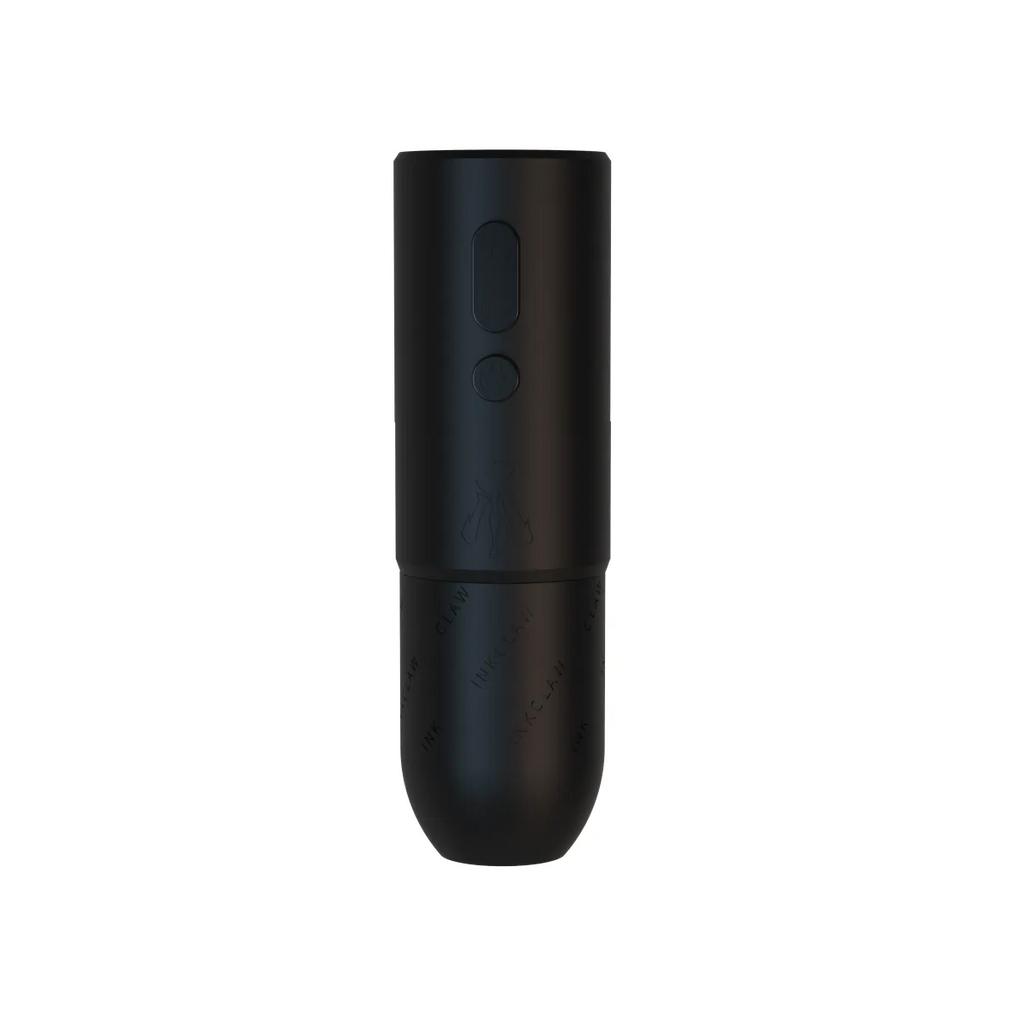

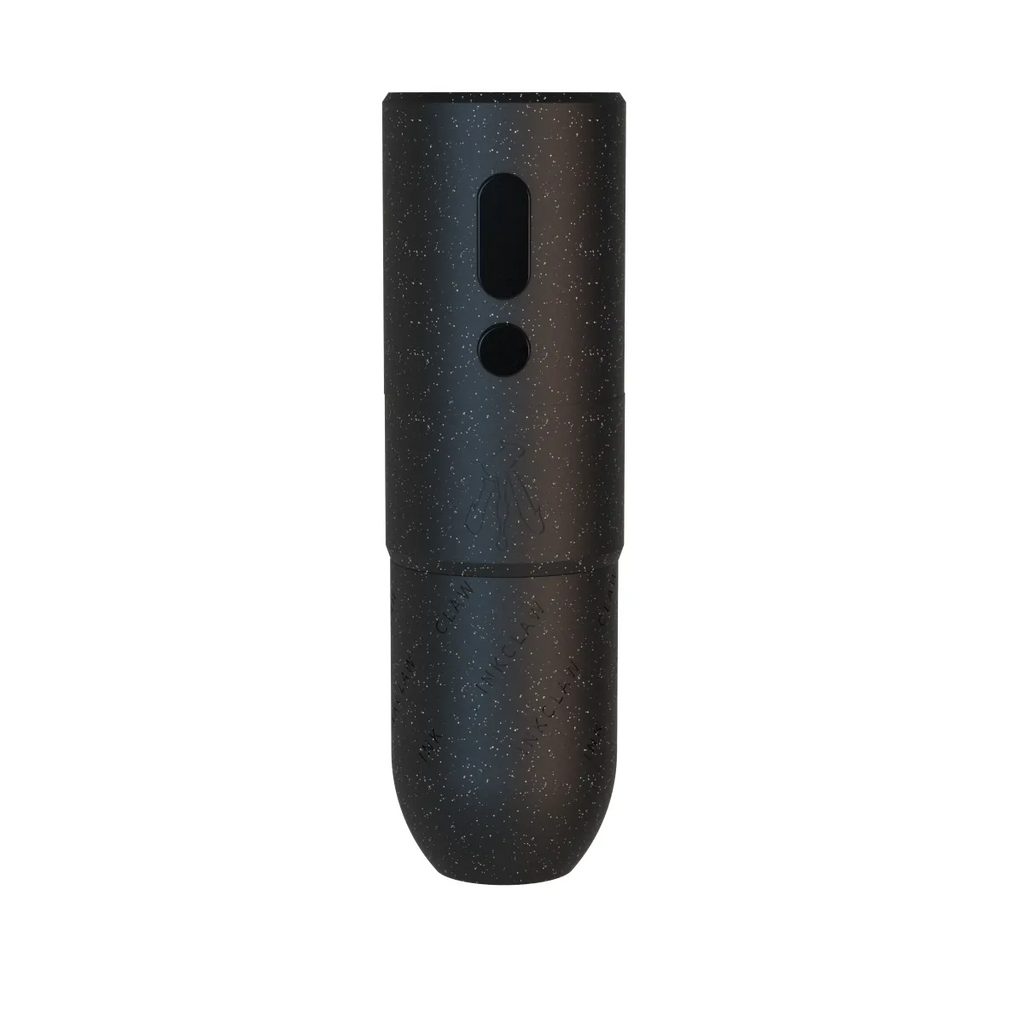

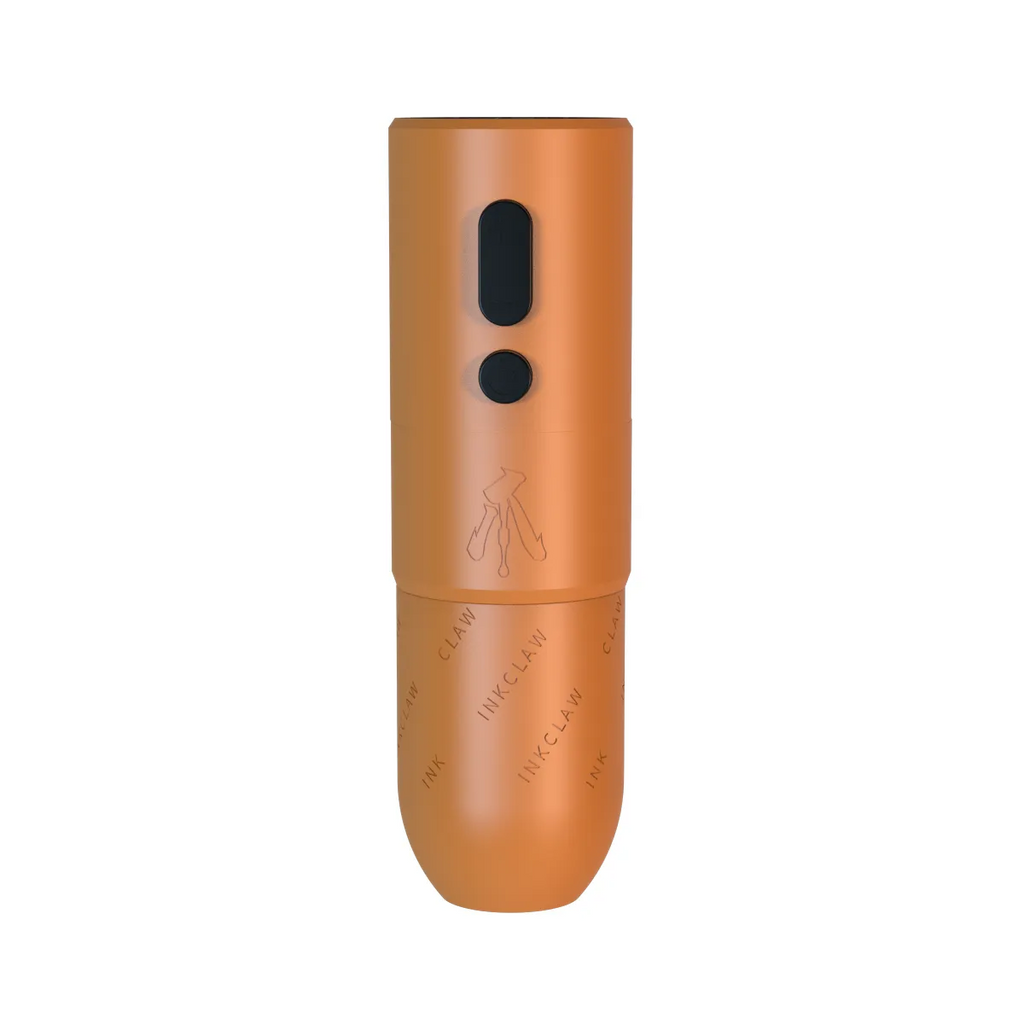

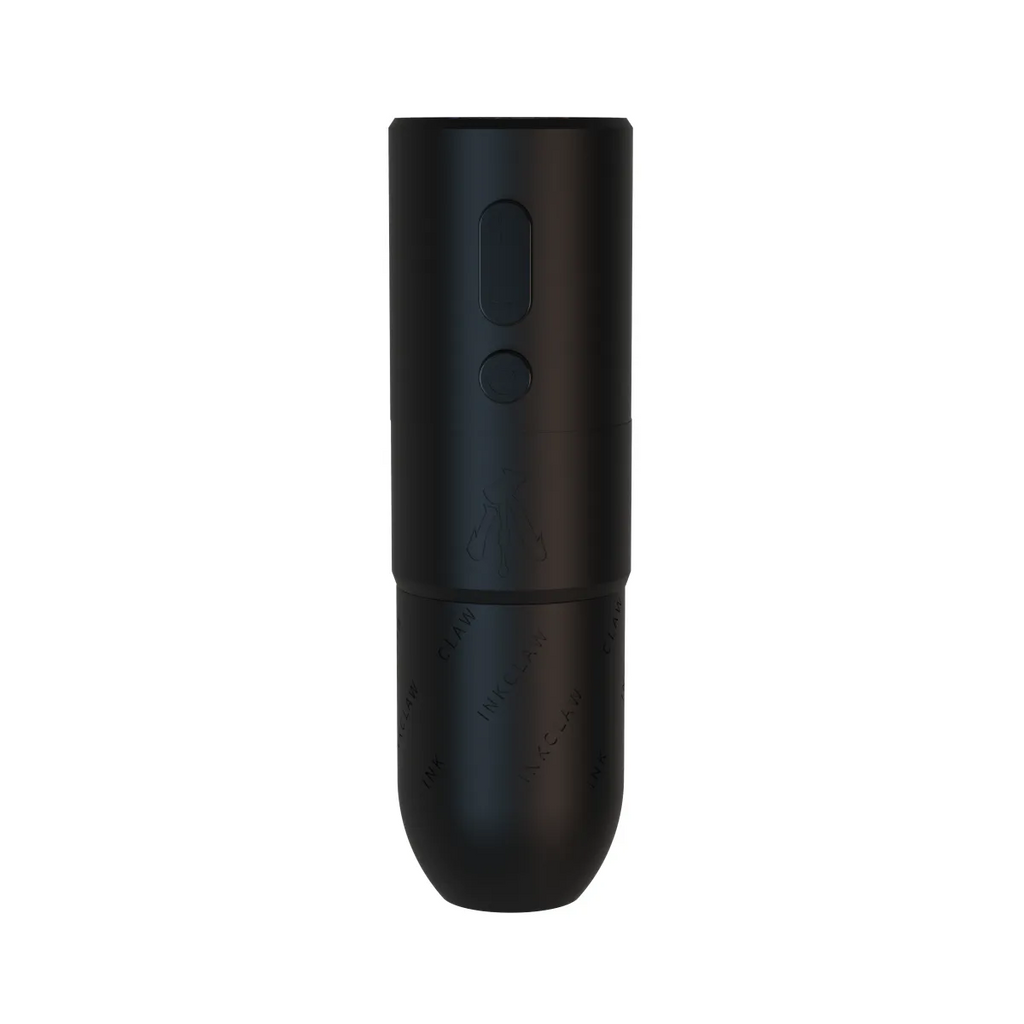

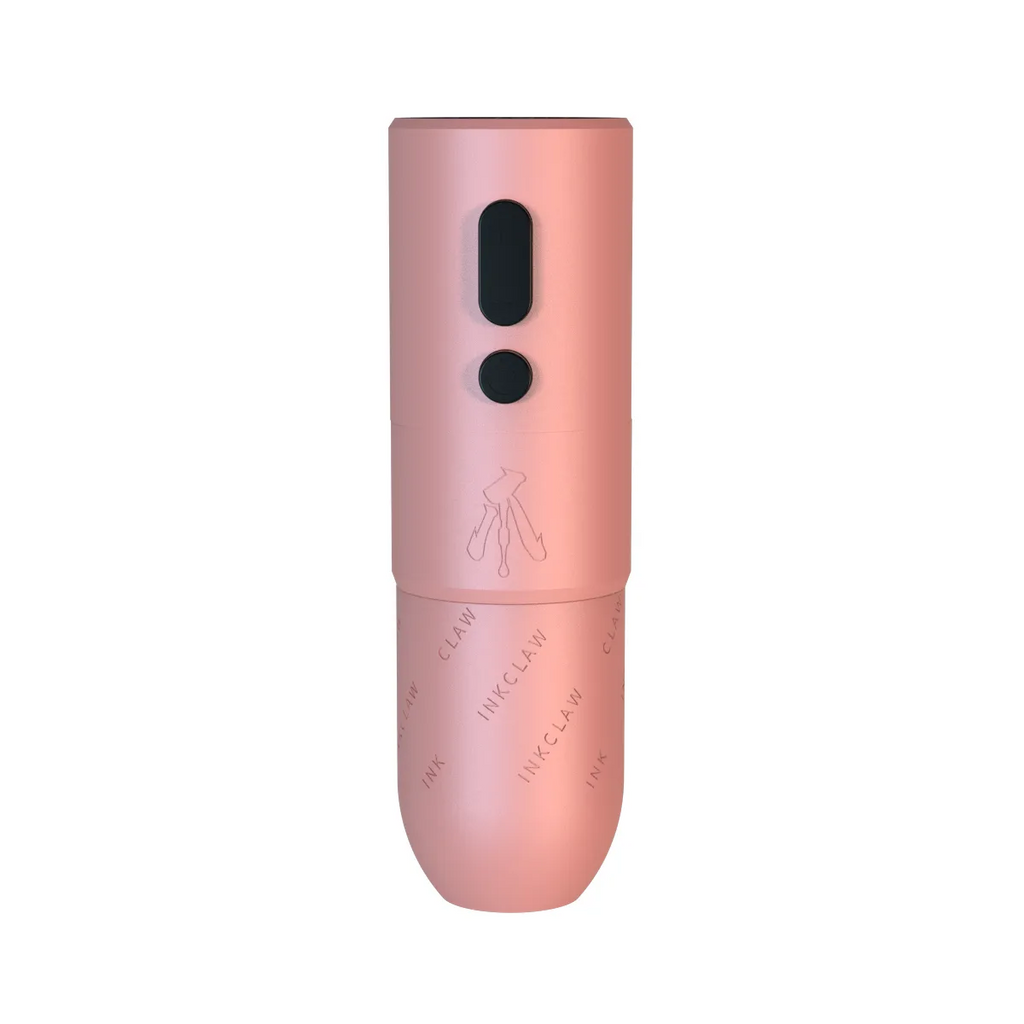

3D Printed Passion Tattoo Pen - Wireless V2

Technical Info

• Dimensions: L 110mm x W 33mm (4.3'' X 1.3'')
• Weight 90-100Grams (3.17oz - 3.52oz)
• Fixed Stroke: 3.5mm/ 4.0mm/ 4.5mm/ 5.0mm Available (extra cam wheel purchase click here)
• Super Strong Brushless Motor 400g Torque | Max 9000RPM
• 18 - 150Hz working frequency underrated 12Volts driven
• 5-7 Hours working time (tested at 100Hz 6000RPM）
• 4 different grips (extra grips purchase click here)
• Fully disposable besides the motor (Accessories Link)
• 1-year warranty on the motor
• Compatible with most cartridge needle brands

Wireless Passion Tattoo Pen Version 2

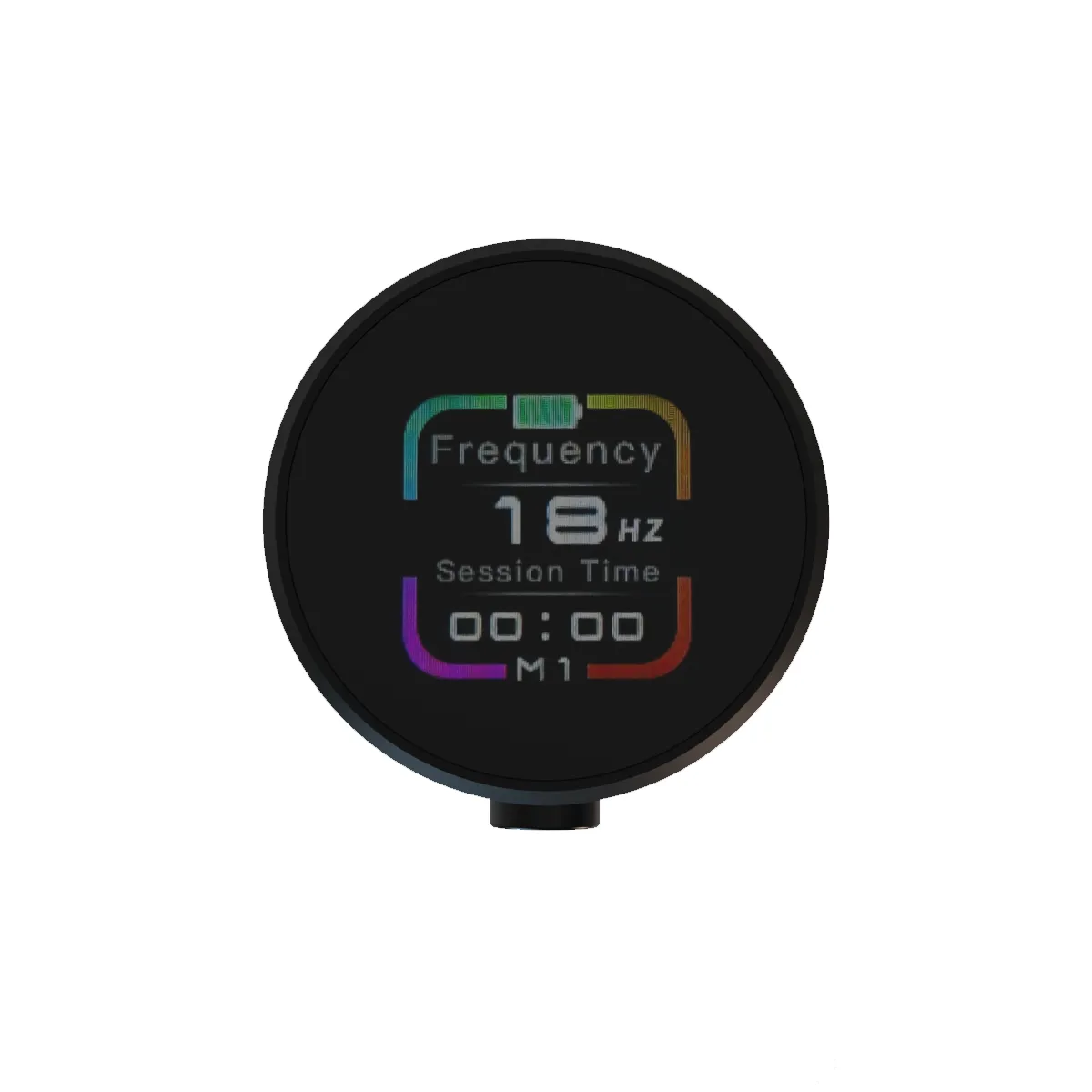

After months of continuous modeling, modification, and research, Inkclaw launched its third 3D-printed direct-drive wireless tattoo pen machine - Passion V2. This version is a frequency adjustment ( 18 -150Hz | 1080 - 9000RPM), and all the frequencies are driven at 12Volts, which brings max power to every punch. Compared to version 1, the adjustment by different voltages, version 2 is stronger at a lower frequency. Also, it can bring you strong torque while keeping the weight relatively light.

PLA & Disposable & Hygienic

The passion tattoo pen is made from a Polylactide Acid. It is biodegradable and derived from corn, provided by Bamboo official. You can use grips disposable ones, and wipe down with your choice of disinfectant wipes to clean the motor house. Even all the parts can be disposable besides the motor and cam wheel.

• Never spray the surface directly to prevent fluids from entering the machine and damaging the motor
• All the parts are not autoclavable

Also due to the nature of 3D printing, there will be printing seams on the body which can not be avoided, and it does not mean defected product.

Different Fixed Stroke

Inkclaw offers 4 different stroke wheels 3.5mm, 4.0mm, 4.5mm, and 5.0mm to fulfill different needs of tattooing and they can be purchased separately. Also it is really easy to change the stroke.

Purchase link here.

Different Grips

Inkclaw offers 4 different diameter grips to meet different requirements, and 3 of them will be included in the standard package.

Extra grips purchase link

Motor House Purchase Link

Wireless Battery and Motor Set - Wireless Passion Pen V2

Printing at home by yourself

Yes, you can print all the parts by yourself at home and applied with different materials, such as carbon fiber, PETG, ABS, and so on. You can ask for the file through email service@inkclaw.com by providing your order number. Just for a reminder, the motor frame I build is only capable with this special motor and cam wheel combo, and it might not work with others.
