Inkclaw Phoenix 1.5 UB Tattoo Bar Needles Battery Grip - Up Button Version

Technical information

• 3V - 15V with 0.1V adjustments

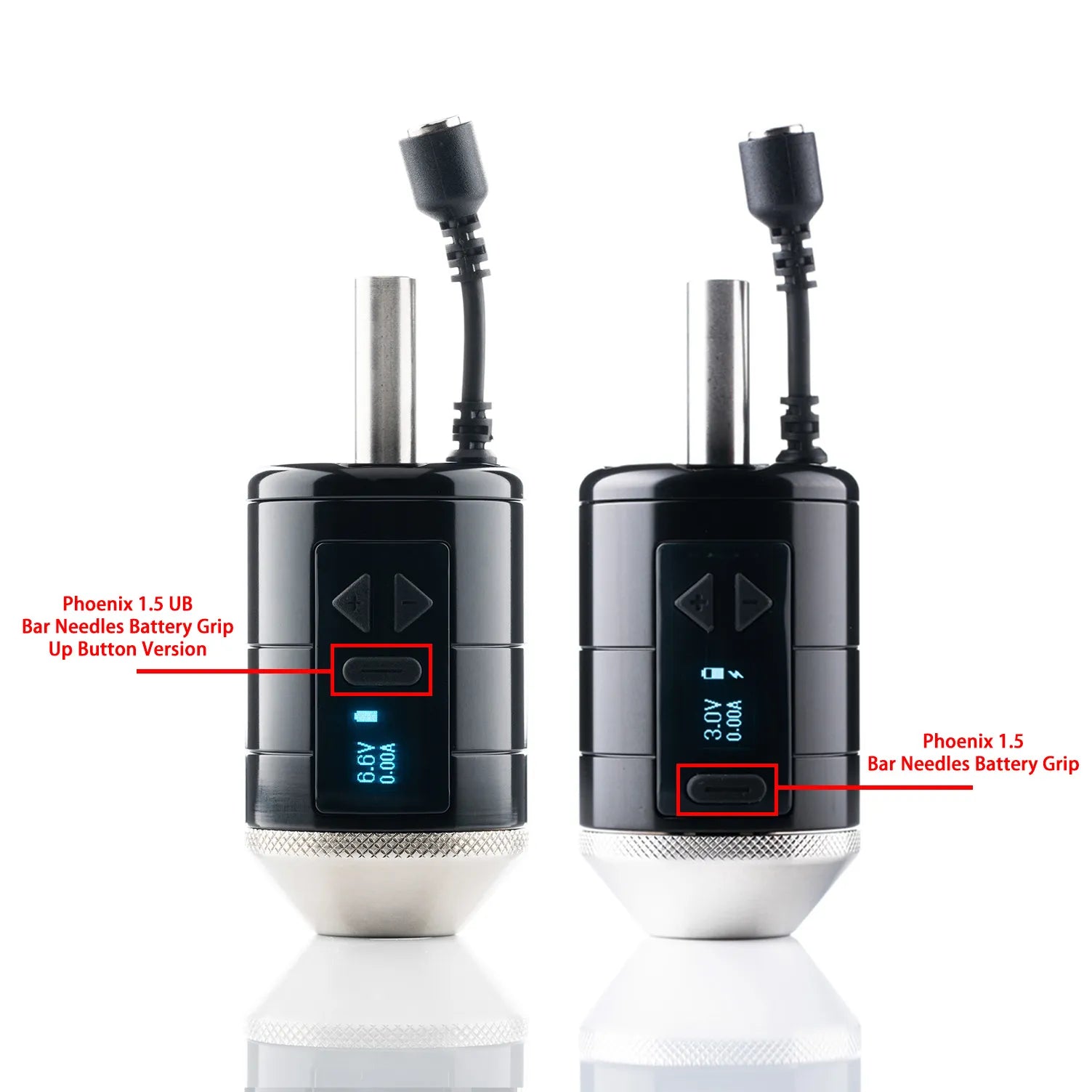

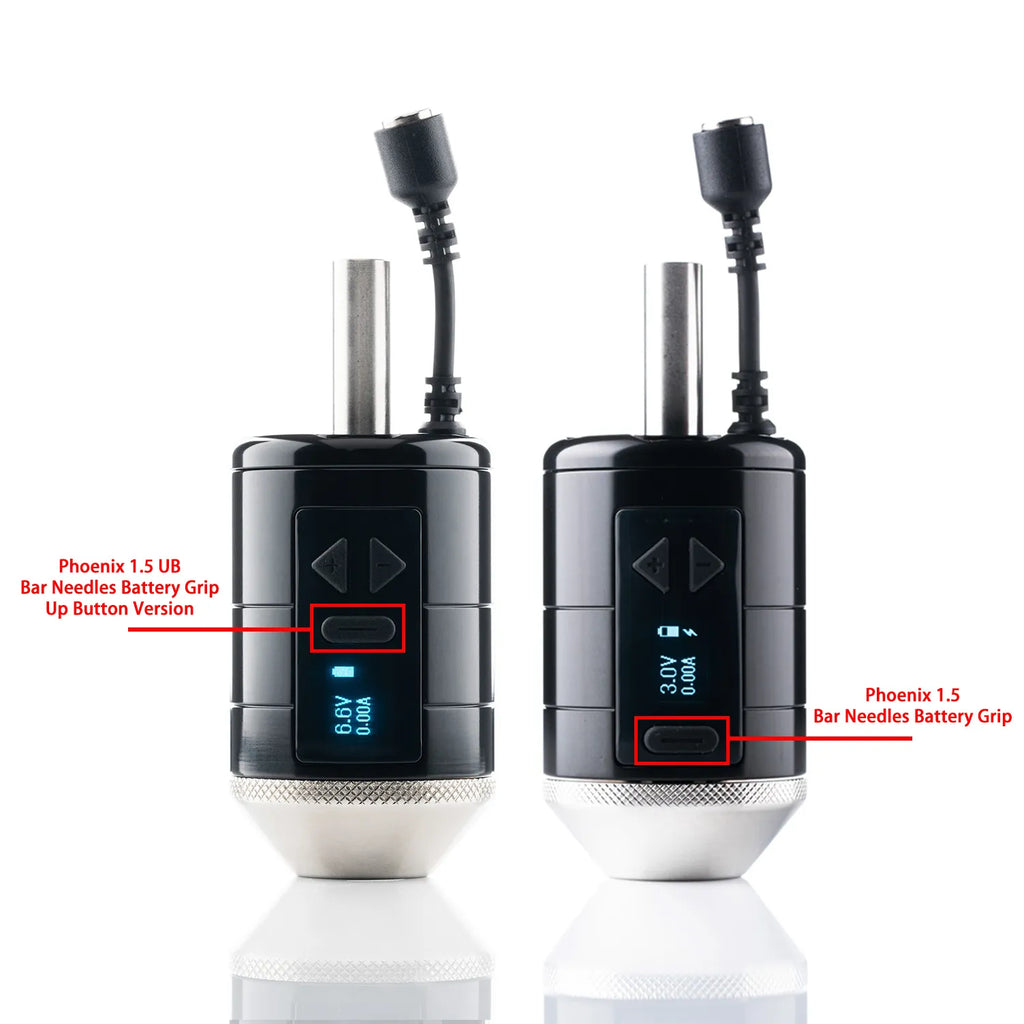

• Phoenix 1.5 and 1.5UB differ only in the position of the power button.
• Both 1.5 and 1.5UB are designed for use with short disposable tips or short metal tips only.
• If you use long disposable tips or long metal tips, you should choose the Phoenix 1.5LT
• 1300Mah can work 3-4hours in between 5-7volt with (0.1-0.2Amp)
• 30 - 40mins super fast charge from 0-95%
• Usage for powerful coils would be less. The higher voltage and the higher amp will lead to less time
• Replacement inner tube and bottom cap click here!
• Grip Body can be wiped externally with cold sanitation products.(More Detail)
• Please keep the battery charged. If it is out of power for a long time, the battery will be drained, and the battery cell cannot be charged.

Phoenix 1.5UB — Key Improvements Over Phoenix 1.0

Compared with the Inkclaw Phoenix 1.0, the Phoenix 1.5 introduces several important upgrades designed to improve maintenance, compatibility, and overall performance.

1. Replaceable Inner Tube for Easier Maintenance

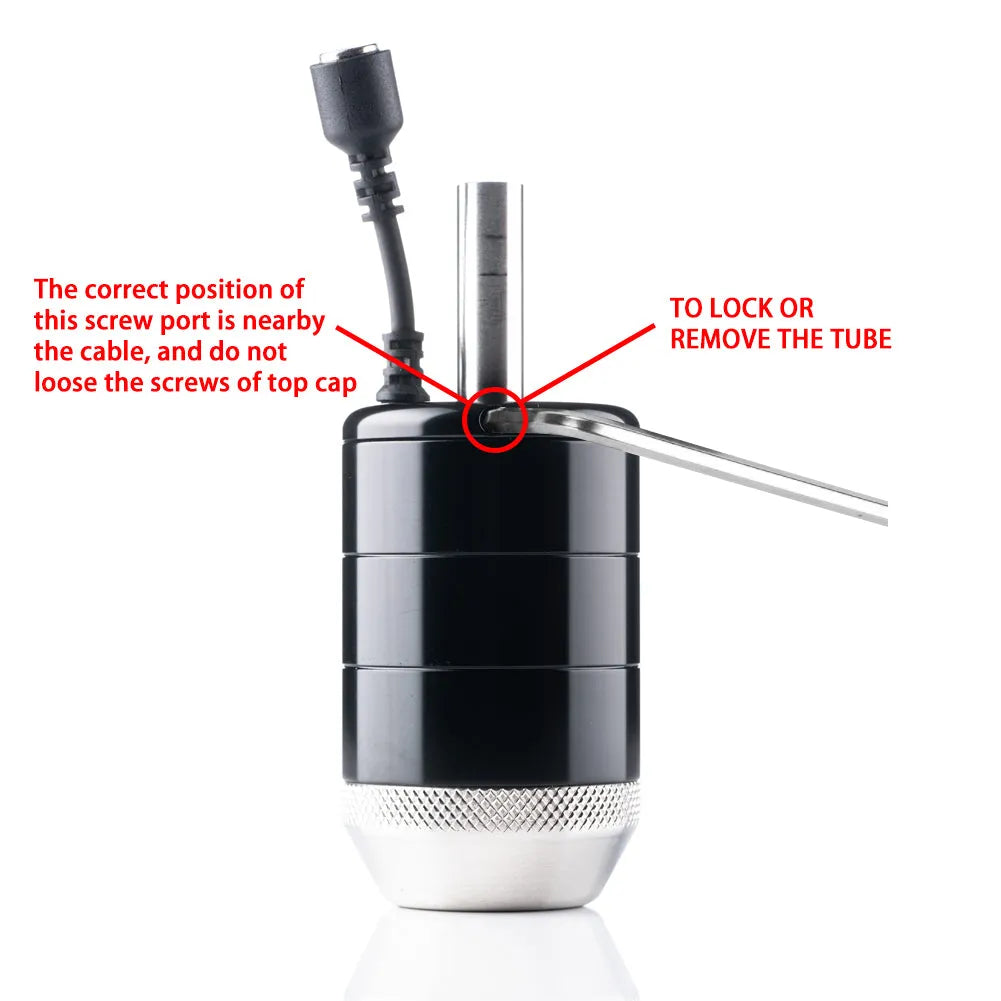

One of the most common concerns raised by Phoenix 1.0 users was the difficulty of thoroughly sterilizing the inner tube. To address this, the Phoenix 1.5 features a replaceable inner tube design, allowing users to remove and replace the tube more easily for cleaning, maintenance, or backup purposes. Additional inner tubes can also be purchased separately as spare or replacement parts.

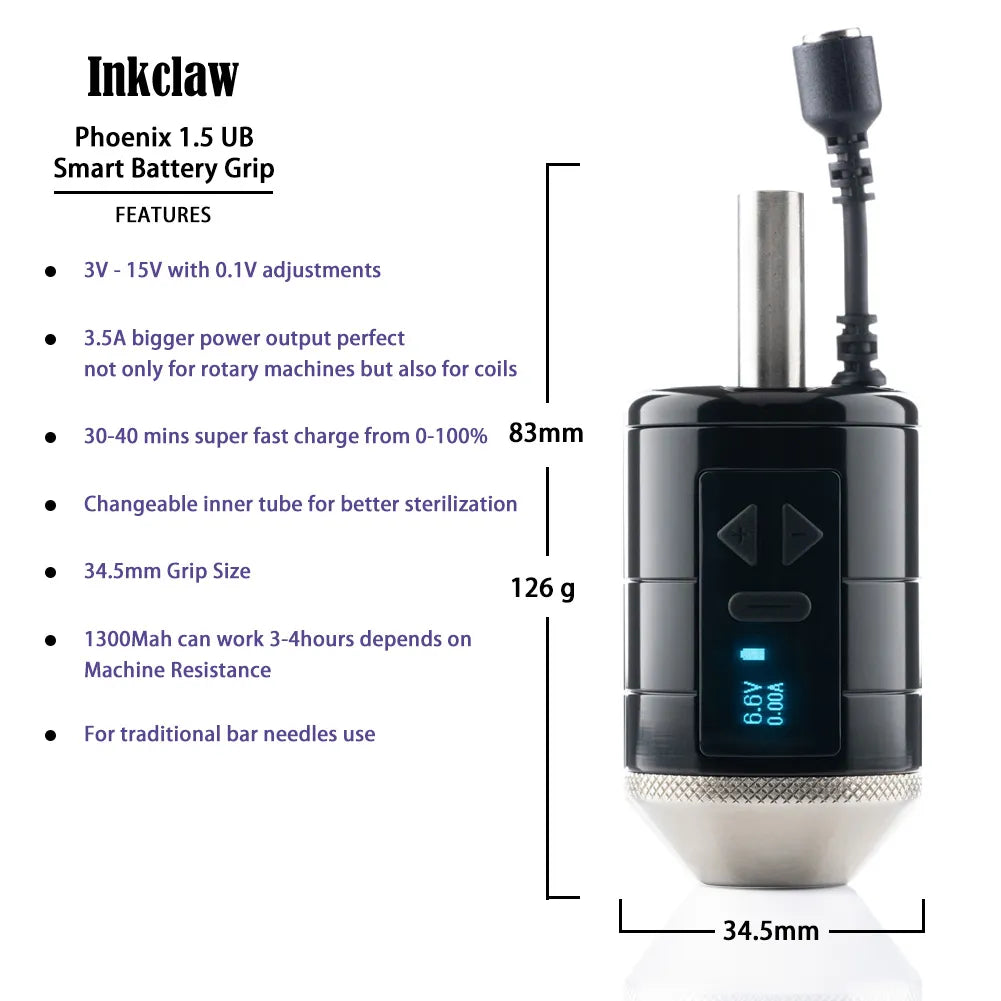

Due to this structural improvement, the grip diameter of the Phoenix 1.5 has increased slightly from 32 mm on the Phoenix 1.0 to 34.3 mm.

2. Higher Output Power for Better Coil Machine Support

The Phoenix 1.5 delivers up to 3.5A of output power, providing stronger and more stable performance, especially for artists using coil machines.

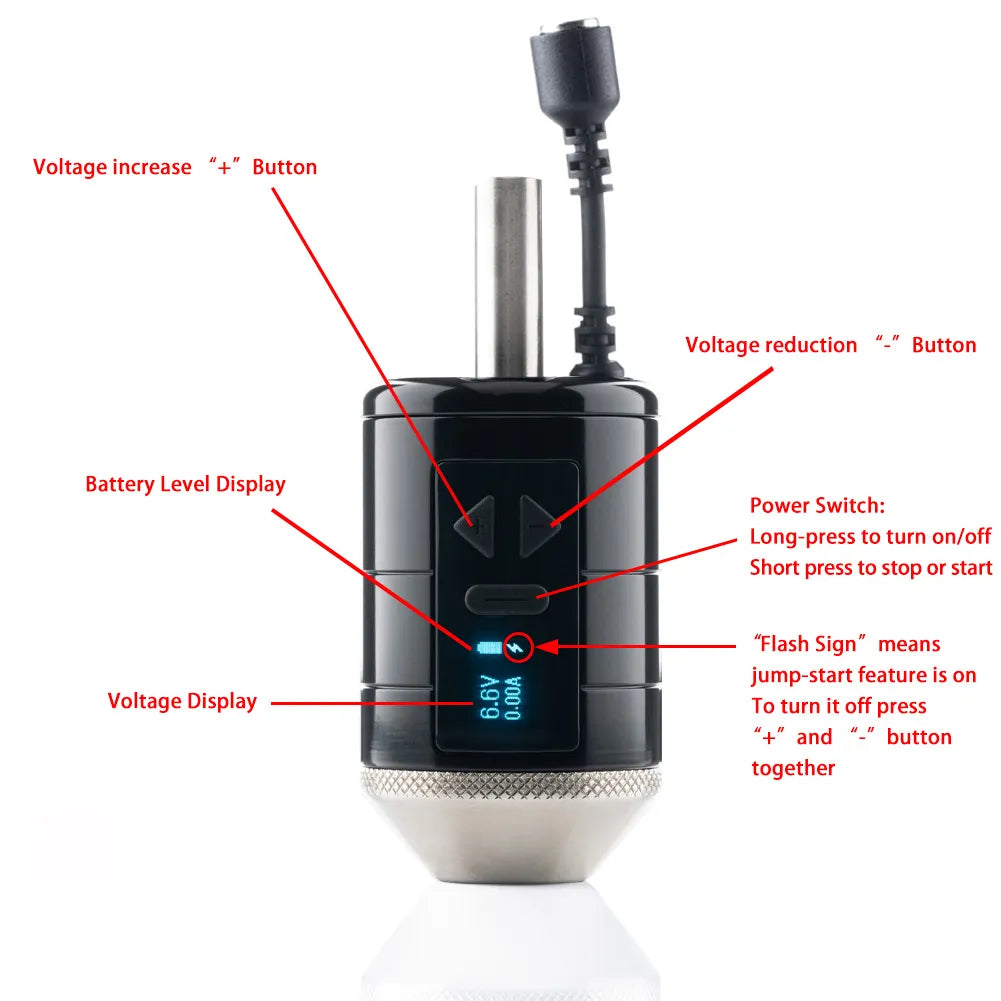

In addition, the jump-start function is now switchable by pressing the “+” and “–” buttons simultaneously. This gives users greater flexibility, as the jump-start feature is not always ideal for coil machines.

3. Wider Voltage Range and Faster Charging

The Phoenix 1.5 offers a wide operating range of 3–15V, giving artists greater flexibility across different machine types, setups, and working styles. This makes it one of the broadest voltage ranges available among wireless tattoo power supplies.

It also supports super-fast charging, allowing the battery to charge from 0% to 100% in approximately 40 minutes, helping reduce downtime during work.

4. Three Versions Available for Different Tip types ( Short or Long Disposable and metal tips)

The Phoenix 1.5 is available in three versions: Phoenix 1.5, Phoenix 1.5UB, and Phoenix 1.5LT.

• Phoenix 1.5 and Phoenix 1.5UB differ only in the position of the power button.

• Both 1.5 and 1.5UB are designed for use with short disposable tips or short metal tips only.

• If you use long disposable tips or long metal tips, you should choose the Phoenix 1.5LT.

• LT stands for Long Tips Exclusive.

Aside from tip compatibility and button placement, all three versions share the same core functions and performance.
