Inkclaw Phoenix 2.0 UB Cartridges Battery Grip - Up Button Version

Technical information

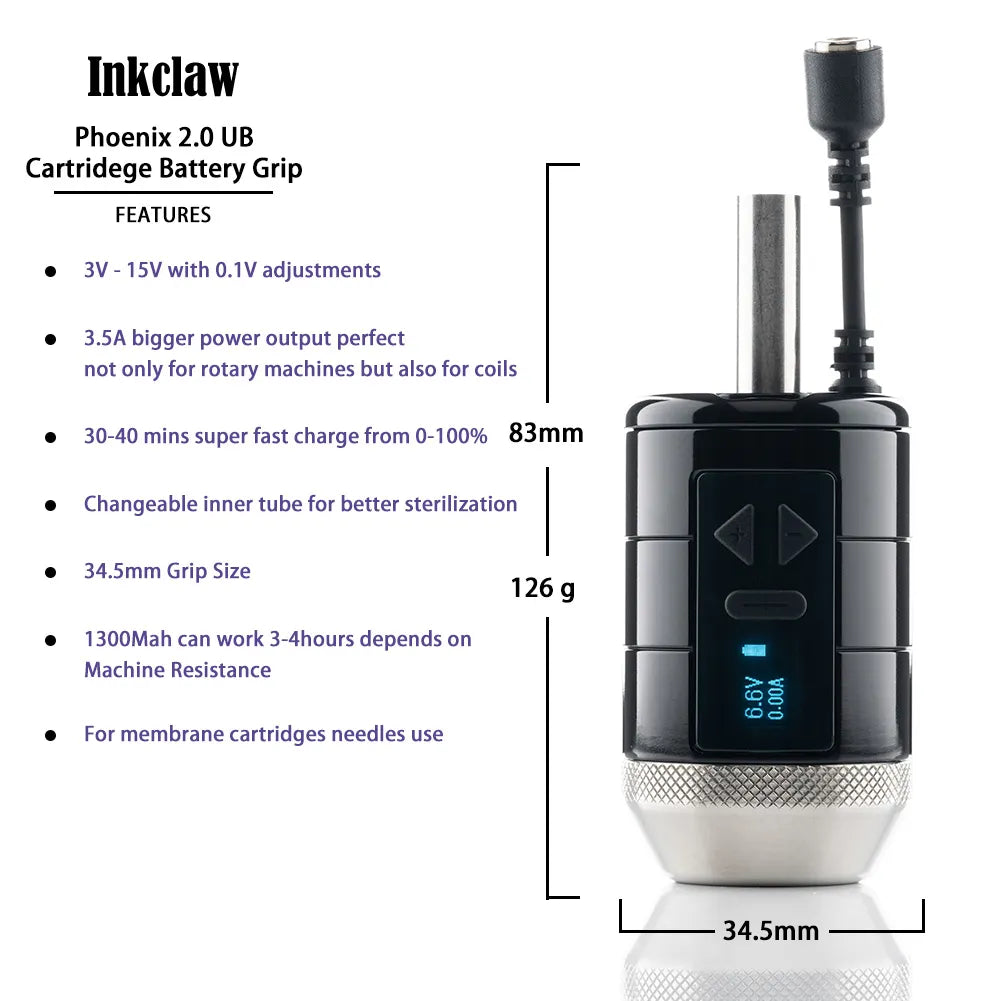

• 3V - 15V with 0.1V adjustments

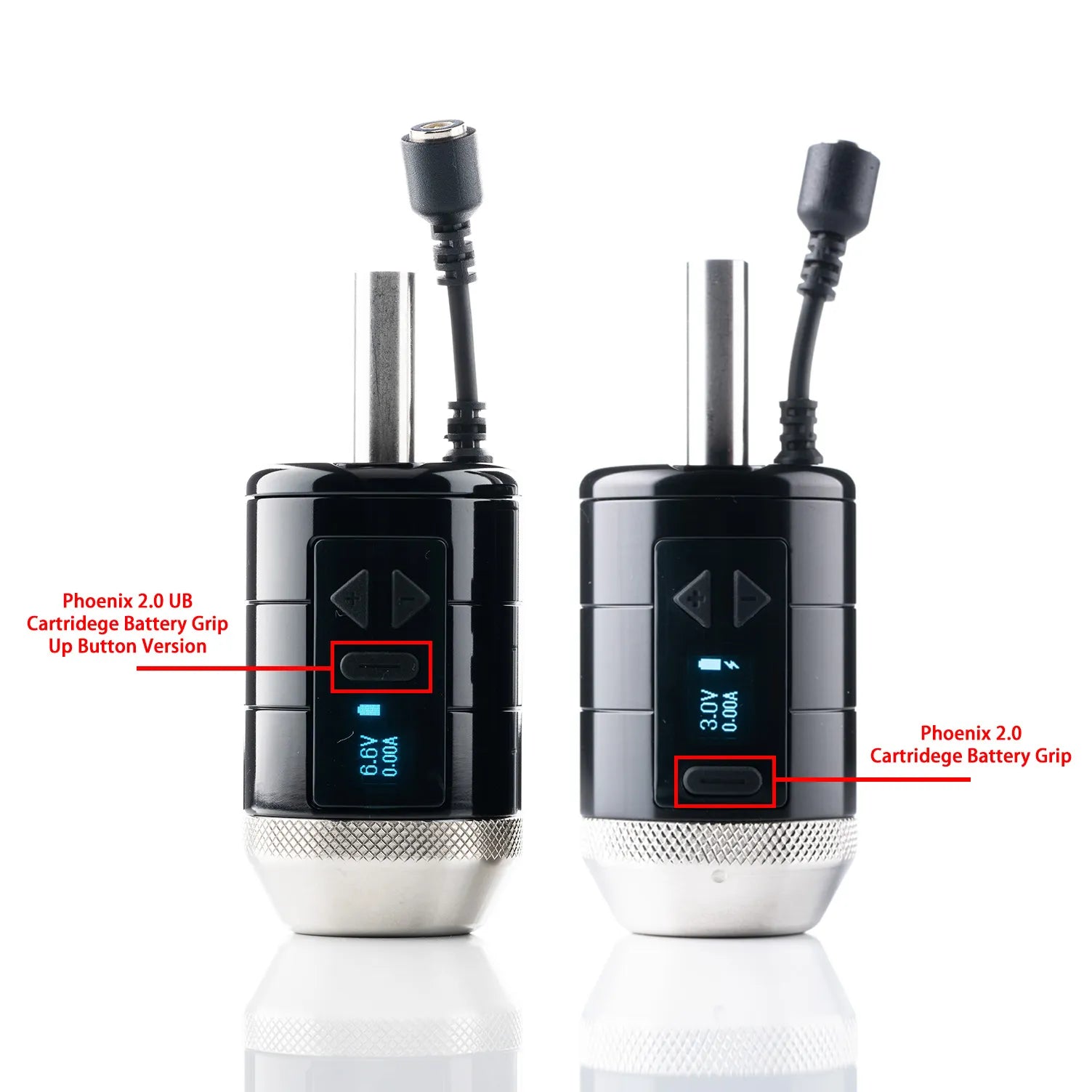

• Phoenix 2.0 and 2.0 UB differ only in the position of the power button.
• 30-40mins super fast charge from 0-100%
• 1300Mah can work 3-4hours in between 5-7volt with (0.1-0.2Amp)
• Usage for powerful coils would be less. The higher voltage and the higher amp will lead to less time
• Come with push rod bars
• Compatible with most tattoo membrane cartridge brands
• Different sizes of inner tubes & bottom cap click here to buy
• Grip Body can be wiped externally with cold sanitation products.(More Detail)
• Please keep the battery charged. If it is out of power for a long time, the battery will be drained, and the battery cell cannot be charged.

Phoenix 2.0UB — Key Improvements Over Phoenix 1.0

Compared with the Inkclaw Phoenix 1.0 tattoo battery grip, the Phoenix 2.0 UB introduces several important upgrades in performance, functionality, and maintenance.

1. The World’s First Cartridge Grip with Integrated Power Supply and Voltage Control

The Inkclaw Phoenix 2.0 is designed specifically for cartridge systems and is one of the first battery grips to combine a built-in power supply with an integrated voltage control system directly inside the grip. It allows artists to adjust voltage from 3V to 15V, offering exceptional flexibility across different machines and working styles.

More importantly, Phoenix 2.0 delivers true voltage output. Unlike some competing products that display 12V while the actual output is significantly lower, the Phoenix 2.0 provides accurate and reliable voltage for consistent machine performance.

2. Higher Output Power for Stronger Performance

Like the Phoenix 1.5, the Phoenix 2.0 provides a precise 3.5A output, which is significantly higher than many comparable products on the market that typically deliver only 1A to 2A. This higher current output ensures stronger starts, more stable running performance, and better compatibility with demanding tattoo machine setups.

3. Improved Sterilization and Maintenance

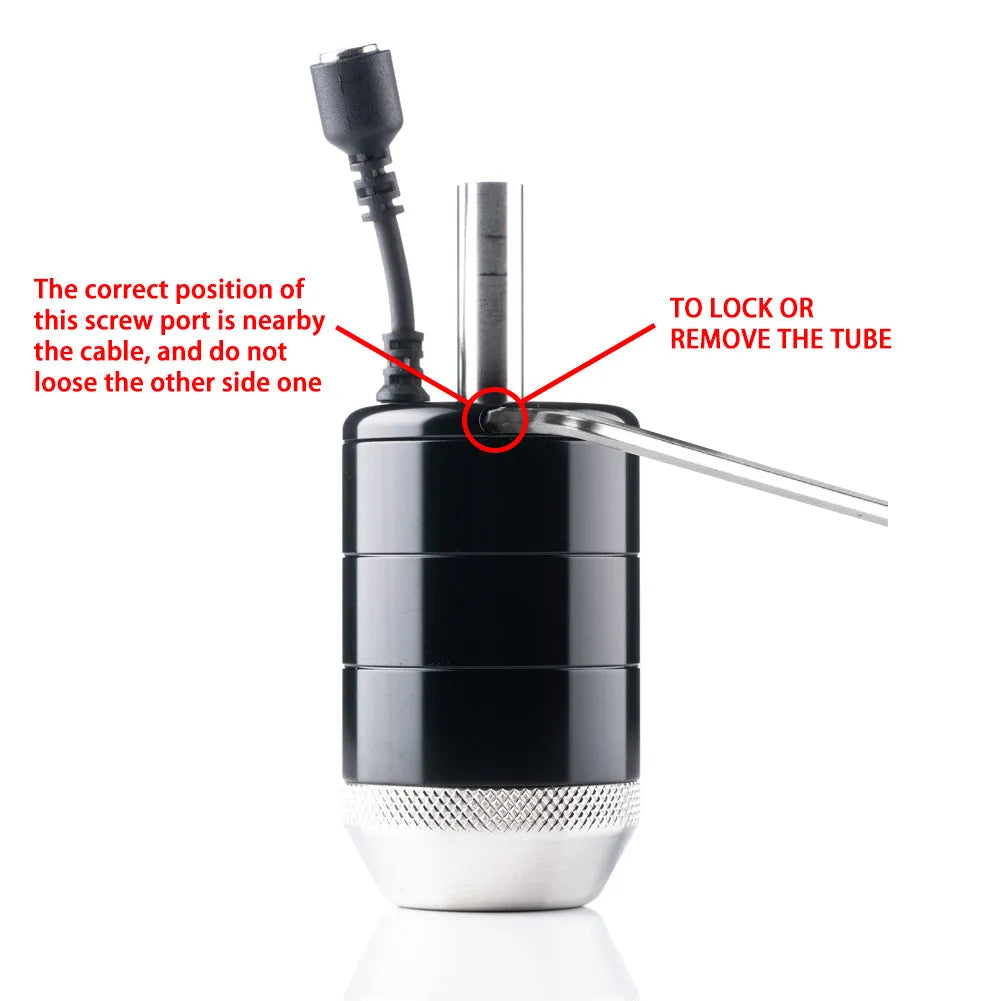

To improve hygiene and ease of maintenance, both the bottom cap and inner tube of the Phoenix 2.0 can be removed or replaced. This makes cleaning and sterilization much easier compared with the Phoenix 1.0 battery grip design, while also allowing users to keep spare parts on hand when needed for more detail please click here.

4. Switchable Jump-Start Function

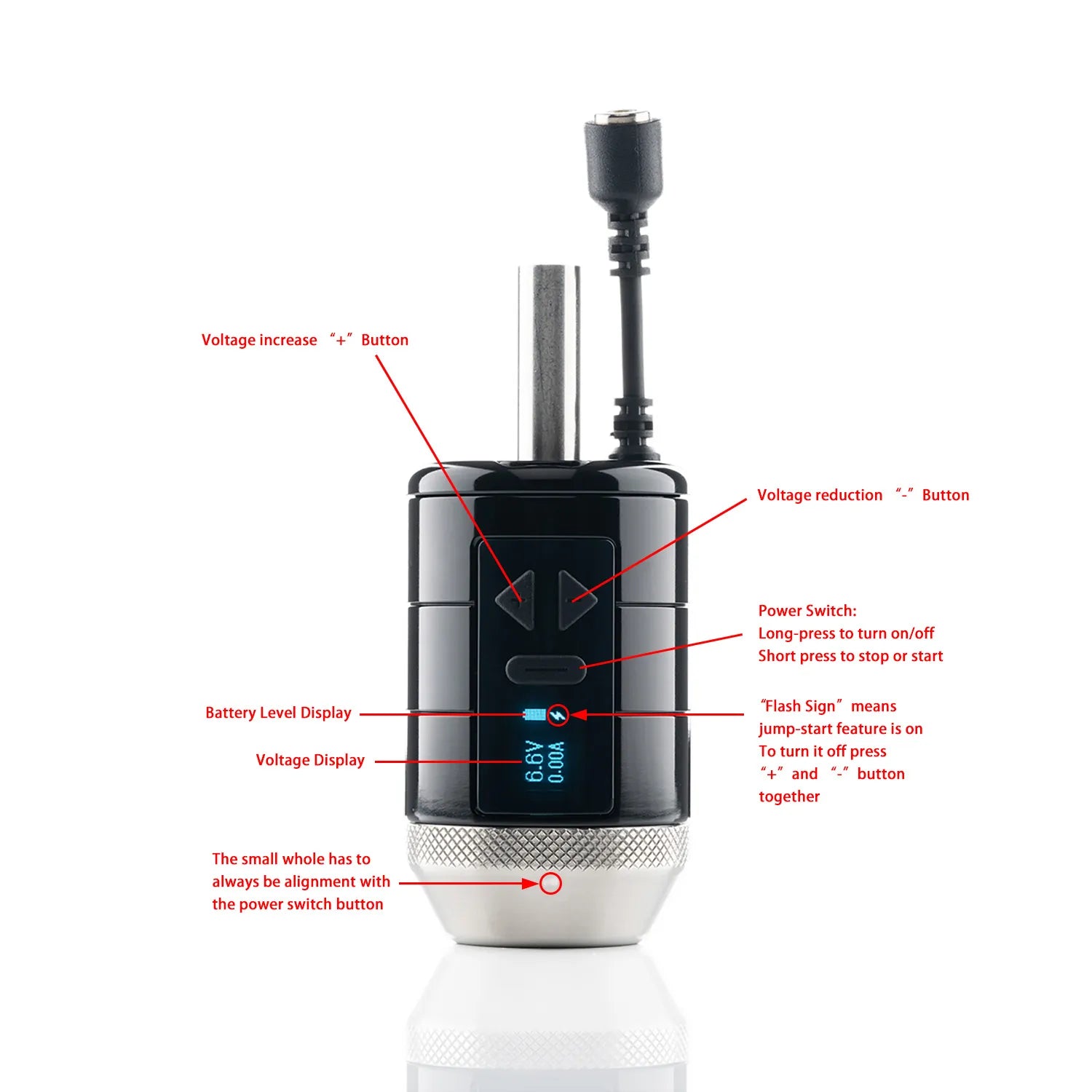

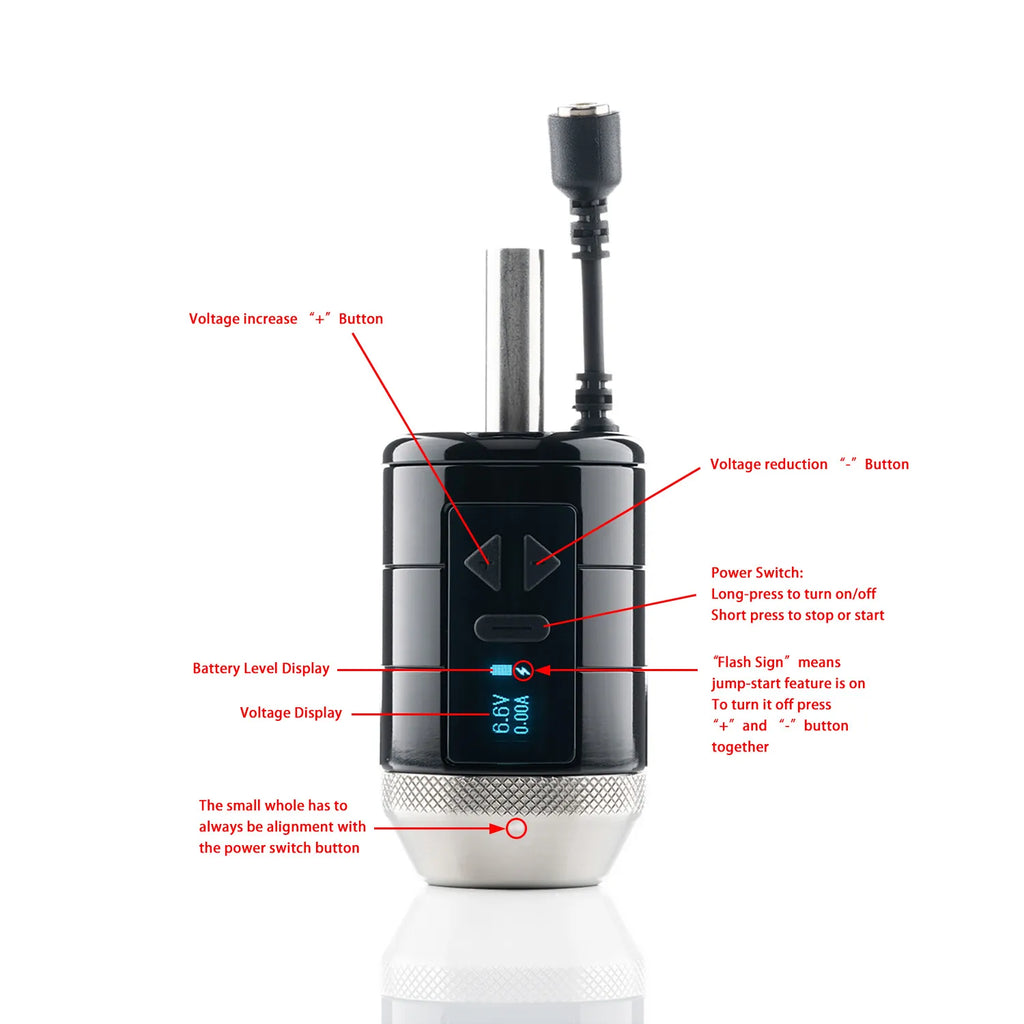

The jump-start function can now be turned on or off by pressing the “+” and “–” buttons simultaneously. This gives artists greater control over machine behavior, especially since many tattoo machines—particularly certain coil-based setups—do not require a jump-start function.

5. Upgraded Super-Fast Charging

Phoenix 2.0 also features an upgraded super-fast charging system, allowing the battery grip to charge from 0% to 100% in approximately 30–40 minutes. This helps minimize downtime and keeps your workflow efficient during long sessions.
